Model No.

WM1215RW03

WM215RW04

Display

Size

21.5" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

350nit

Contrast Ratio

1000 : 1

View Angle (H/V)

178° / 178°

High Brightness (Optional)

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000nit

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

178° / 178°

I/O Ports

VGA

V

V

HDMI

V

USB (for touch screen)

V

V

Power Requirement

Power Requirement

DC in 12V ( 60W )

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10

Mechanical & Environmental

Operation Temp.

-20 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100 x 100mm) & Yoke mount

Dimension (WxHxD)

560 x 360 x 68 mm

Weight

9.3 kg

Optional

P/N: 302A17005A

1500 cd/m²  21.5” LCD panel 1920 x 1080 dpi

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord ( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord ( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 309M106004

DC in 9V ~ 36V

P/N: 3120600002

RS232 touch screen

Ordering Information

Standard

WM215RW03

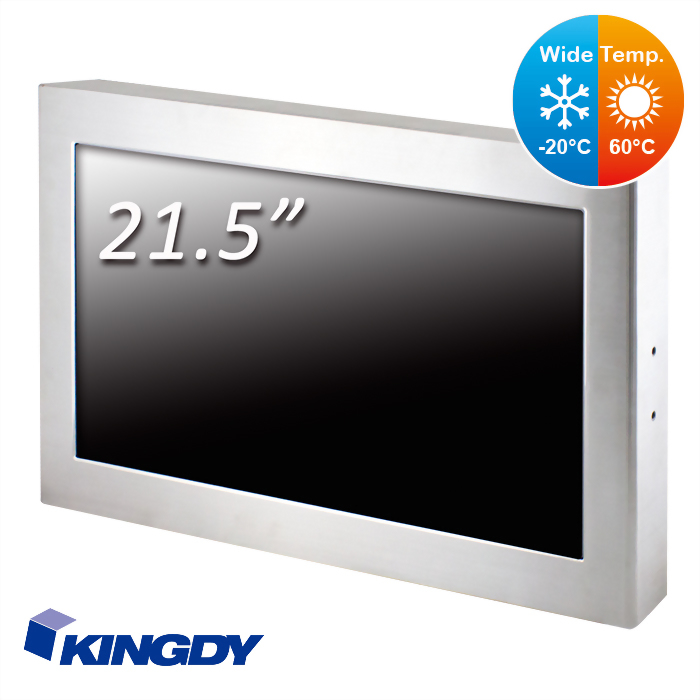

21.5” wide temperature full IP65 display, 5 wires resistive, 1 x VGA,1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable,

1 x DC in external power adapter

WM215RW04

21.5” wide temperature full IP65 display, 5 wires resistive, 1 x VGA, 1 x HDMI, 1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter

High Brightness

WM215RK03

21.5” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA, 1 x USB, 1 x 1.8M VGA cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m²

WM215RK04

21.5” wide temperature full IP65 Display, 5 wires resistive, 1 x VGA, 1 x HDMI,1 x USB, 1 x 1.8M VGA cable, 1 x 2M HDMI cable, 1 x 1.8M USB cable, 1 x DC in external power adapter, 1000 cd/m²

**Specifications are subject to change without notice.
