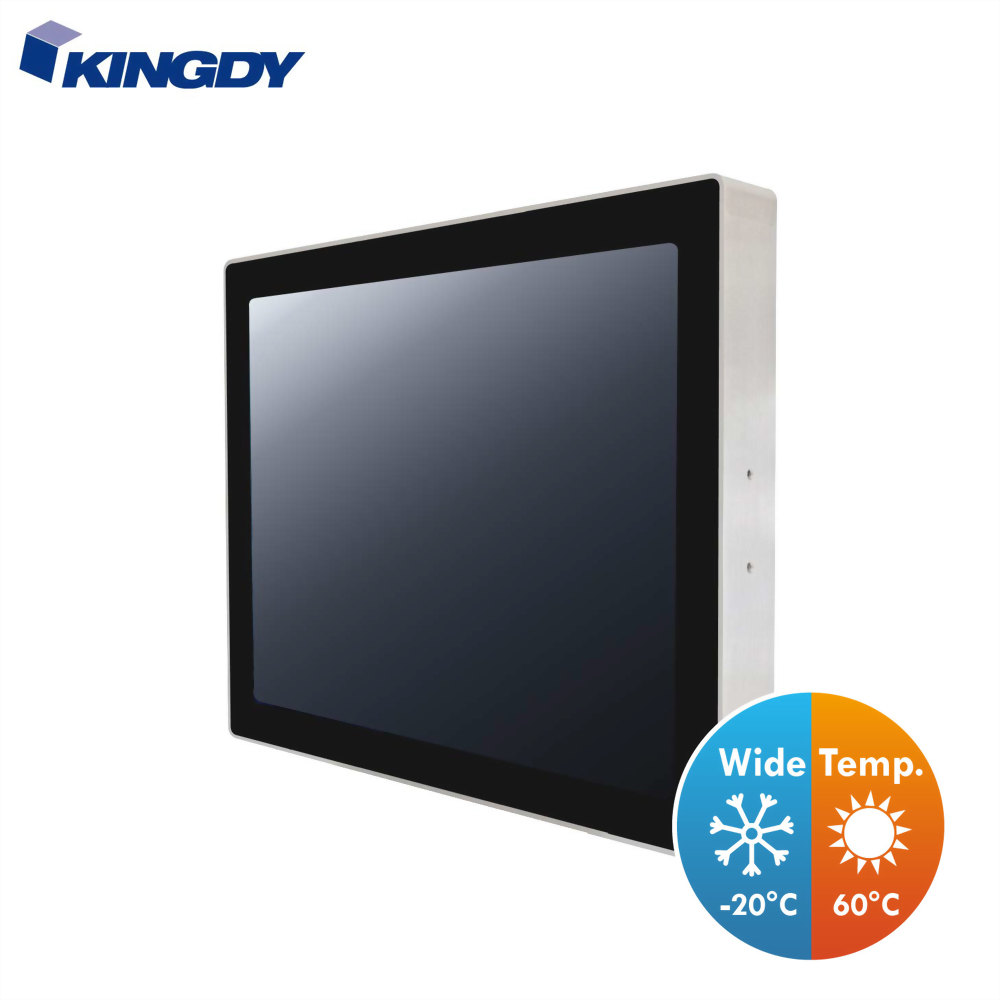

21.5" Wide-Screen IP69K Panel PC | AP Series with i3/i5/i7 Wide Temp

21.5" Wide temp.13th Intel® Core™ i7 i5 i3

Features
• Intel® 13th Gen Raptor Lake-P Embedded/Industrial SKU Series
• Fanless solution and compact housing
• DDR5 5200 MHz SODIMM Slot up to 32GB
• Full IP69K Stainless design
• All M12 waterproof connectors
• DC-in 12~24V
• True flat PCT / 5 wires resistive
• Yoke Mount / VESA Mount
• Wide operating temperature supported

Model : AP215R124W AP215R125W AP215R126W

Datasheet-TP-150-170-190R081

Q'ty :

Description
Specifications

Q1 : What temperature range does the AP Series with CF17 Wide Temp support?
A1 : It supports –40°C to +70°C, ensuring reliable performance in cold rooms, outdoor sites, and high-heat industrial environments.

Q2 : Are all models designed with full IP69K stainless protection?
A2 : Yes. Every size in the AP Series features a full IP69K stainless enclosure for washdown and hygiene-critical applications.

Q3 : Do the connectors provide complete waterproof sealing?
A3 : Yes. All models use M12 waterproof connectors for maximum ingress protection and long-term industrial durability.

Q4 : What touch options are available for the AP Series?
A4 : Both True Flat projected capacitive touch and 5-wire resistive touch are available depending on glove usability and application needs.

Q5 : Is the AP Series fully fanless?
A5 : Yes. The fanless design prevents contamination, supports silent operation, and enhances reliability in harsh environments.

Q6 : What mounting methods are supported?
A6 : All models support Yoke Mount and VESA Mount for flexible installation in machinery, production lines, and workstations.

Q7 : Which industries typically adopt the AP Series with wide-temperature support?
A7 : Food and beverage, cold storage, chemical processing, outdoor automation, and environments requiring extreme temperature resistance.

Q8 : Does the AP Series offer high-performance computing?
A8 : Yes. With Intel® i3/i5/i7, it supports demanding workloads such as automation control, data processing, visualization, and edge computing.

	Display for 16:9 Ratio
Size	21.5" TFT		24" TFT
Resolution	1920 x 1080		1920 x 1080
Colors	16.7M		16.7M
Luminance	250 cd/m²		250 cd/m²
Contrast Ratio	3000：1		1000：1
View Angle (H/V)	176°/176°		170°/160°
Model NO.	AP215R124S AP215R125S AP215R126S		AP240R124S AP240R125S AP240R126S
SYSTEM
CPU	Intel® Mobile 13th Core™ i7-1365URE(124)/ i5-1345URE(125)/ i3-1315URE(126) , 28W
Memory	Single-channel DDR5 5200 MHz Up to 32 GB
Storage	1 x SATA 3.0
OS Support	Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2) Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan) Linux (Support by request)
I/O Ports	⁕ The I/O interface shown may vary depending on the selected motherboard.
M12 RS232	2	M12 USB 2.0		2
M12 GLAN	2
Expansion Slot
M.2	1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280 1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042 1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230
MECHANICAL & ENVIRONMENTAL
Operation Temp.	-40 ~ 70°C
Storage Humidity	10 ~ 90%, non-condensing
Form Factor
Touch Screen	True flat PCT / 5 wires resistive
Mounting	Yoke Mount / VESA Mount
Power Supply	Full IP67 Waterproof Power Adapter: 12V/24V default; 9–36V input supported. Customization by customer.
Optional
Panel Type	High Brightness LCD Panel: Available in various sizes and brightness specifications. Please inquire for available options and custom configurations
WIFI Optional	External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance
Power adaptor	Full IP67 Waterproof Power adaptor : Specifications may vary by country ( 150W / 100 ~ 305V AC input / 12V DC output) / (150W / 100 ~ 305V AC input / 24V DC output)
