Q1: What performance
benefits does the Intel® N97 provide over J6412?
A1: The N97 runs up to 3.6 GHz, offering higher single-thread performance for
advanced automation, vision inspection, and data logging applications.
Q2: Which industrial fields are ideal for N97 Panel PCs?
A2: Perfect for smart factory control, process visualization, and semi-outdoor
kiosks that require fast response, multi-tasking, and energy efficiency.
Q3: Are the TP Series and SBC-260J compatible with Windows 11 and Linux?
A3: Yes. The N97 supports Windows 11 IoT Enterprise and major Linux
distributions, offering full compatibility with industrial automation software.
Q4: How does TP Series ensure durability in harsh conditions?
A4: With front IP66/IP67 aluminum bezel, fanless cooling, and wide temperature
support, the system runs reliably in dusty, humid, or high-temperature
environments.
Q5: Can the N97 version support high-brightness or sunlight-readable screens?
A5: Yes. Optional high-brightness panels are available, maintaining clarity
even in outdoor or bright production settings.
|

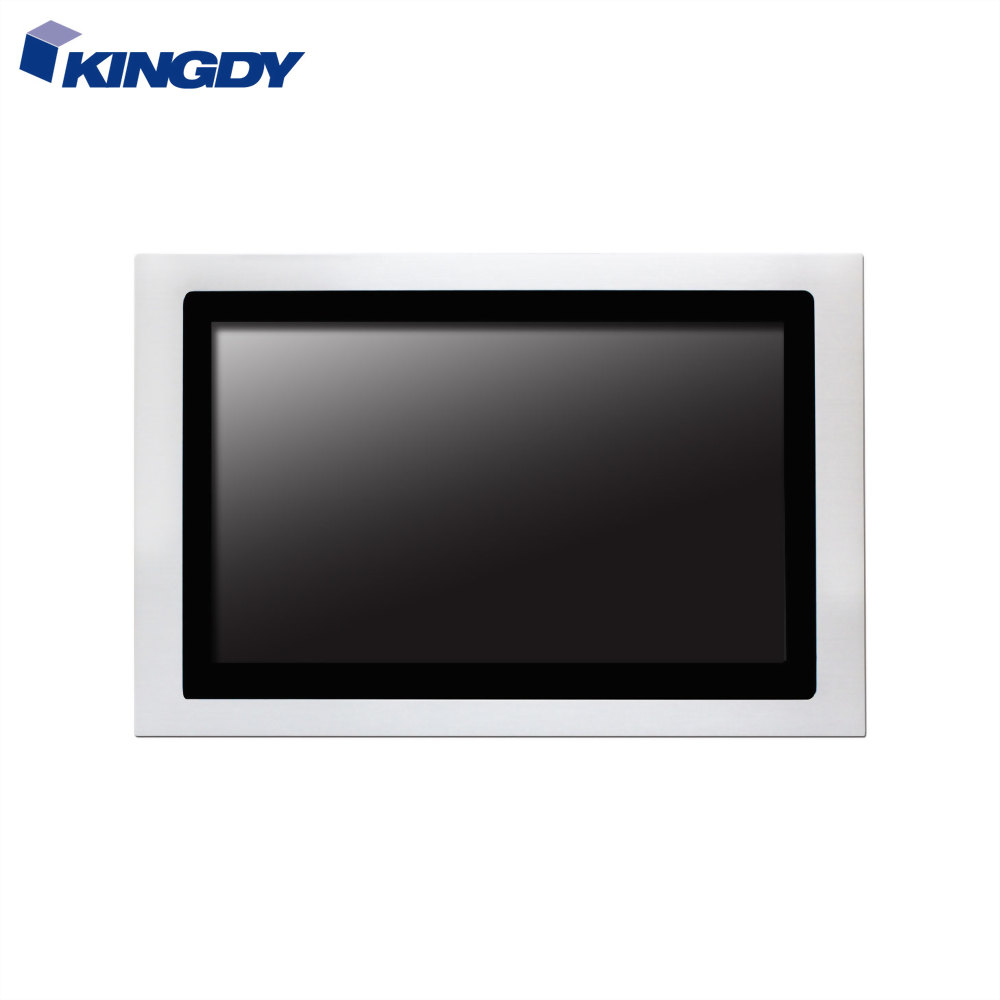

Display for 16:9 Ratio |
|
|||||||
|
Size |
15.6" TFT |
|
||||||
|
Resolution |
1366 x 768 |
1920 x 1080 |
|
|||||
|
Colors |
16.7M |
16.7M |
|
|||||
|
Luminance |
400 cd/m2 |
400 cd/m2 |
|
|||||
|
Contrast Ratio |
500：1 |
700：1 |
|
|||||
|
View Angle (H/V) |
170°/160° |
160°/140° |
|
|||||
|
Model NO. |
SP150R113S |
|
||||||
|
SYSTEM |
|
|||||||
|
CPU |
12th Gen Intel® Alder Lake-N N97 |
|
||||||
|
Memory |
1 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB |
|
||||||
|
Storage |
1 x SATA 3.0 / 1 x M.2 ( Key M, 2242 / 2260 / 2280 ) with PCIe x1 or SATA3 for SSD |
|
||||||
|
OS Support |
Windows 10 Pro / Windows 10 IoT Windows 11 Pro / Windows 11 IoT |
|
||||||
|
TPM |
TPM 2.0 onboard IC |
|
||||||
|
I/O Ports |
⁕ The I/O interface shown may vary depending on the selected motherboard. |
|
||||||
|
RS232/422/485 |
2 |
USB 3.2 Gen 2 |
2 |
|
||||
|
HDMI |
1 |
DP |
1 |
|
||||
|
GLAN |
2 |
VGA |
1 |
|
||||
|
Expansion Slot |
|
|||||||
|
M.2 |
1 x M.2 ( Key E, 2230 ) with PCIe x1, USB 2.0 and CNVi for WiFi optional 1 x M.2 ( Key B, 3042 / 3052 ) with PCIe x1 / USB 3.2 / USB 2.0 and SIM for 4G / 5G |
|
||||||
|
MECHANICAL & ENVIRONMENTAL |
|
|||||||
|
Operation Temp. |
0 ~ 45°C |
|
||||||
|
Storage Humidity |
10 ~ 90%, non-condensing |
|
||||||
|
Form Factor |
|
|||||||
|
Touch Screen |
15" / 17" / 19"：PCT / 5W(Single touch) 15" / 15.6" / 17" / 19" / 21.5" / 24"：Projected Capacitive Multi-Touch Panel |
|
||||||
|
Mounting |
VESA mount (100x100mm) & Panel mount & Clip mount |
|
||||||
|
Power Supply |
3 Pin power terminal block for DC in 9V~36V |
|
||||||
