SYSTEM

CPU

Frequency

Intel® IOTG Alder Lake-N Processor N97, QC, 12W

N97, 2.0GHz, up to 3.6GHz

Storage

1 x SATA 3.0

Memory

Max. Capacity

Up to 16GB

Socket

1 x 262-pin SO-DIMM

Display

HDMI

1

DisplayPort

1

Audio

Realtekl® ALC897 HD Audio Codec

H/W Monitor

256-level Watchdog Timer

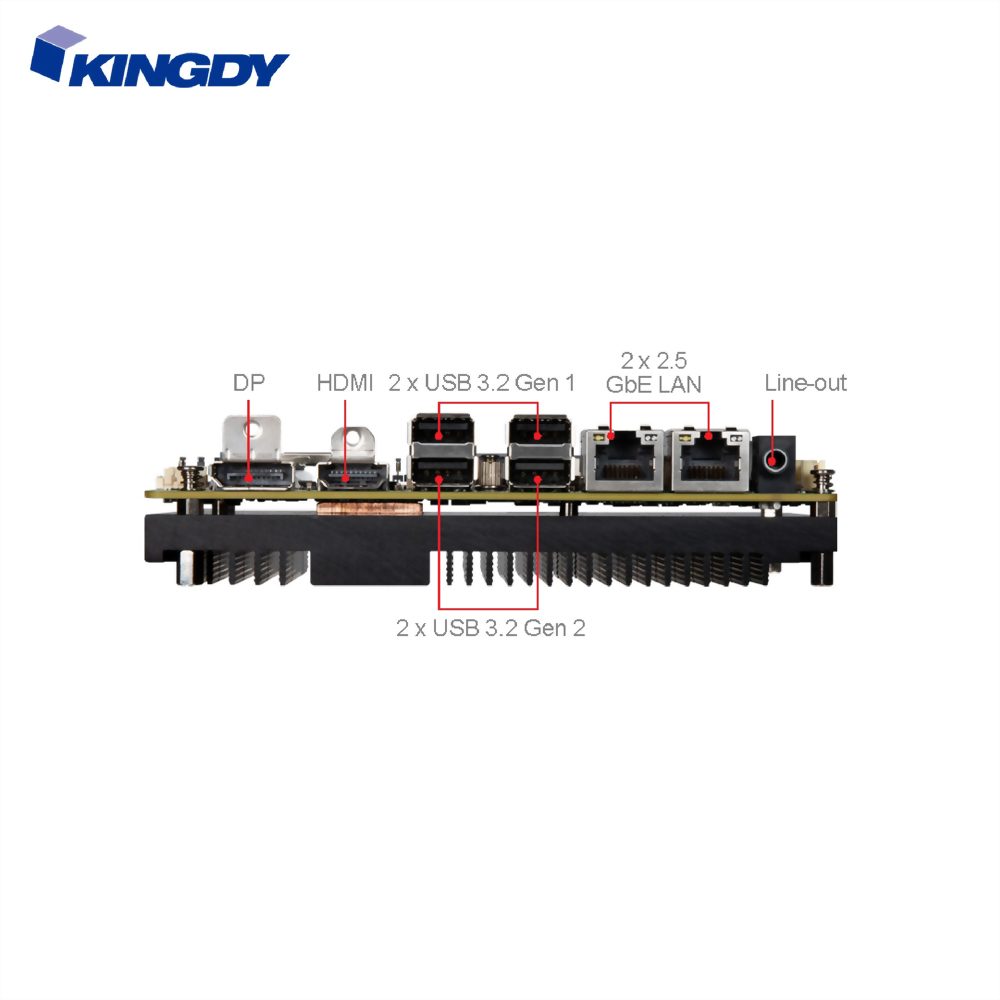

I/O Interface

USB

6 x USB 2.0 (internal)

2 x USB 3.2 Gen 2 (rear)

2 x USB 3.2 Gen 1 (rear)

Serial

2 x COM ports (internal)

COM1: RS-232/422/485, 0V/5V/12V

COM2: RS-232

GPIO

8-bit (4 x GPI; 4 x GPO), 5V

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

-10 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Dimensions

146 x 102 mm (3.5")

Weight

0.58 kg

OS Support

Windows 10 IoT Enterprise LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise LTSC (64-bit, 24H2)

Linux (Support by request)

Power Supply

DC-in 9~36V
