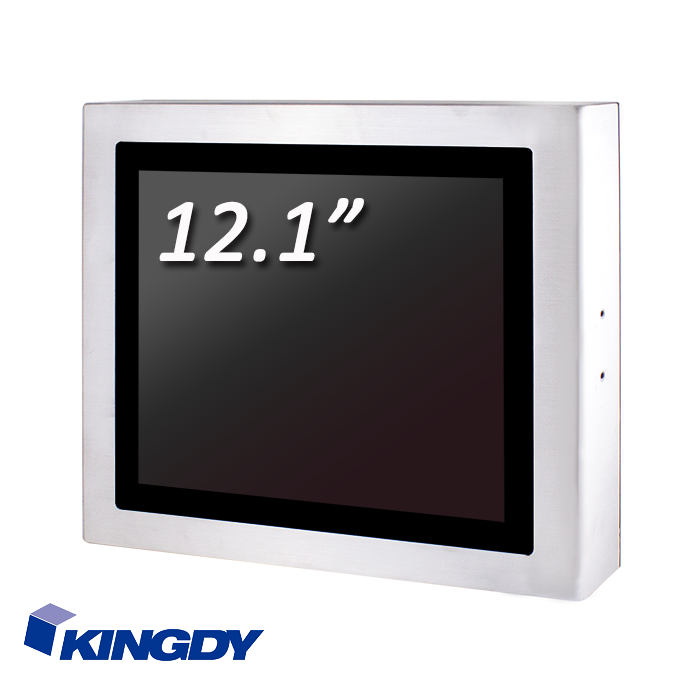

12.1" 7th Gen Touch IPC

● Fanless and rugged design
● 7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U Processors
● Resolution 1024 x 768 dpi
● True Flat PCT / 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless chassis
● All IP65 M12 waterproof connectors
● 2 x USB, 2 x RS232, 2 x GLAN
● VESA mount & Yoke mount
Model : IP122P075S, IP122P076S, IP122P077S, IP122R075S, IP122R076S, IP122R077S

Model No.

IP122P075/076/077S

IP122R075/076/077S

System

CPU

7th Gen Intel® Core™ i3 7100U (075) / i5 7300U (076) / i7 7600U (077) CPU (On Board)

Memory

1 x 260-pin DDR4 2133MHz SODIMM up to 16 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 3.0 2.5” HDD/SSD

Expansion

Mini PCI-E

2 x Full-size

Power Requirement

Power Requirement

DC in 12 ~ 24V

Touch Screen

Touch Screen

PCT

5W (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 25, Ubuntu 16.04

Display

Size

12.1" TFT (4:3)

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

800 : 1

View Angle (H/V)

160°/160°

Mechanical & Environmental

Heatsink

Back side

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount ( 100 X 100 mm) & Yoke mount

Dimension (WxHxD)

347 x 276 x 65 mm

Weight

TBD

Optional

P/N: 3100400001

External antenna ( WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3120400001

RFID Reader RS232 interface
(
13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A17006C

1600 cd/m2  High Brightness 12.1” LCD panel 1024 x 768 dpi

Optional HB Panel

IP122P075/076/077J

IP122R075/076/077J

Resolution

1024 x 768

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

800 : 1

Viewing Angle (H/V)

160°/160°

Order information

IP122P075S04064

12.1” stainless steel panel PC, Intel i3 7100U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122P075J04064

12.1” stainless steel panel PC, Intel i3 7100U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

IP122R075S04064

12.1” stainless steel panel PC, Intel i3 7100U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122R075J04064

12.1” stainless steel panel PC, Intel i3 7100U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

IP122P076S04064

12.1” stainless steel panel PC, Intel i5 7300U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122P076J04064

12.1” stainless steel panel PC, Intel i5 7300U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

IP122R076S04064

12.1” stainless steel panel PC, Intel i5 7300U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122R076J04064

12.1” stainless steel panel PC, Intel i5 7300U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

IP122P077S04064

12.1” stainless steel panel PC, Intel i7 7600U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122P077J04064

12.1” stainless steel panel PC, Intel i7 7600U processor, True flat PCT, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

IP122R077S04064

12.1” stainless steel panel PC, Intel i7 7600U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

IP122R077J04064

12.1” stainless steel panel PC, Intel i7 7600U processor, True flat 5W resistive, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
