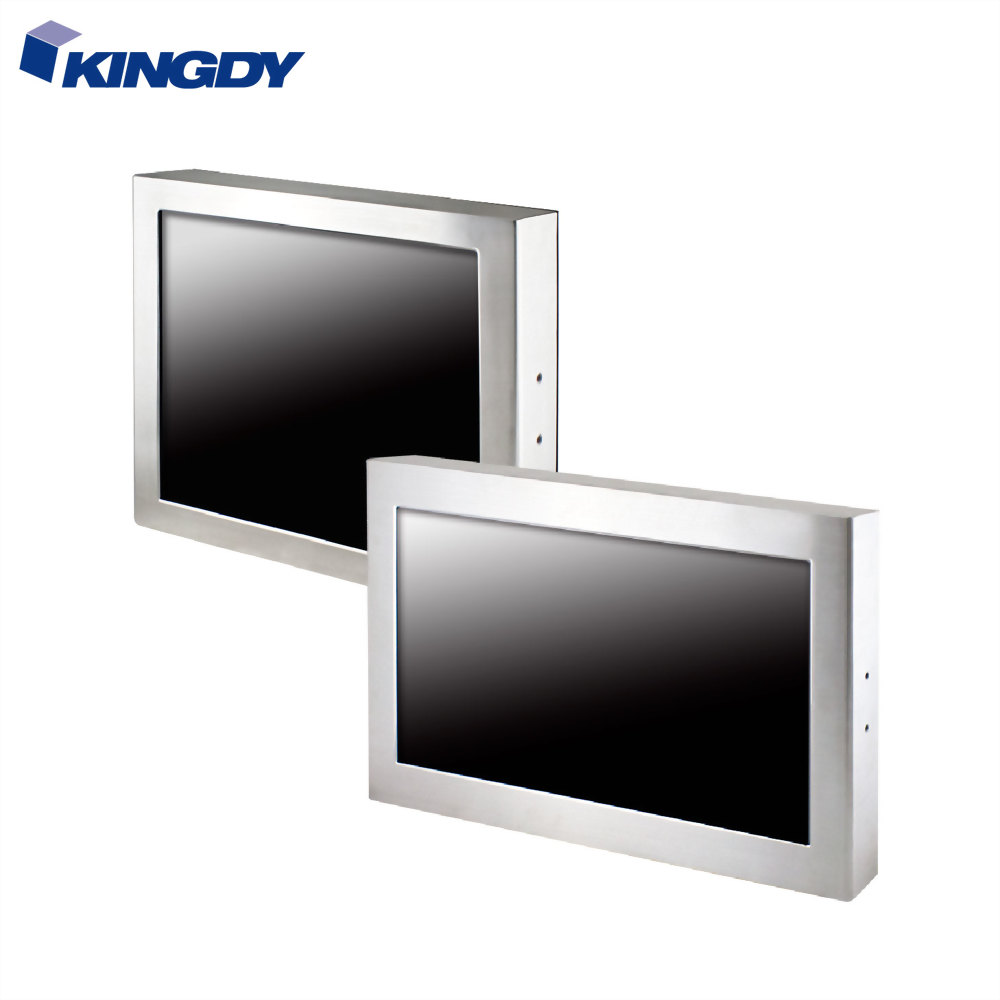

Display for 3:4 Ratio

Display for 16:9 Ratio

Size

15" TFT

17" TFT

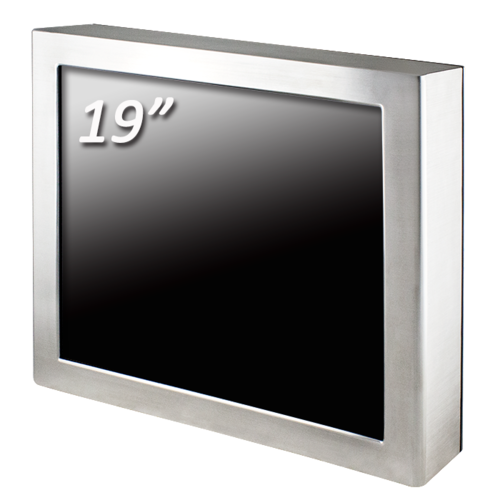

19" TFT

21.5" TFT

24" TFT

Resolution

1024 x 768

1280 x 1024

1280 x 1024

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

300 cd/m2

350 cd/m2

250 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

2500:1

1000:1

1000：1

3000：1

1000：1

View Angle (H/V)

176°/176°

170°/160°

170°/160°

176°/176°

170°/160°

SYSTEM

CPU

Intel® IOTG Alder Lake-N Processor N97, QC, 12W

Memory

DDR5 4800 MHz SODIMM Slot up to 16GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, pre-scan)

Linux (Support by request)

TPM

Infineon SLB9672VU2.0

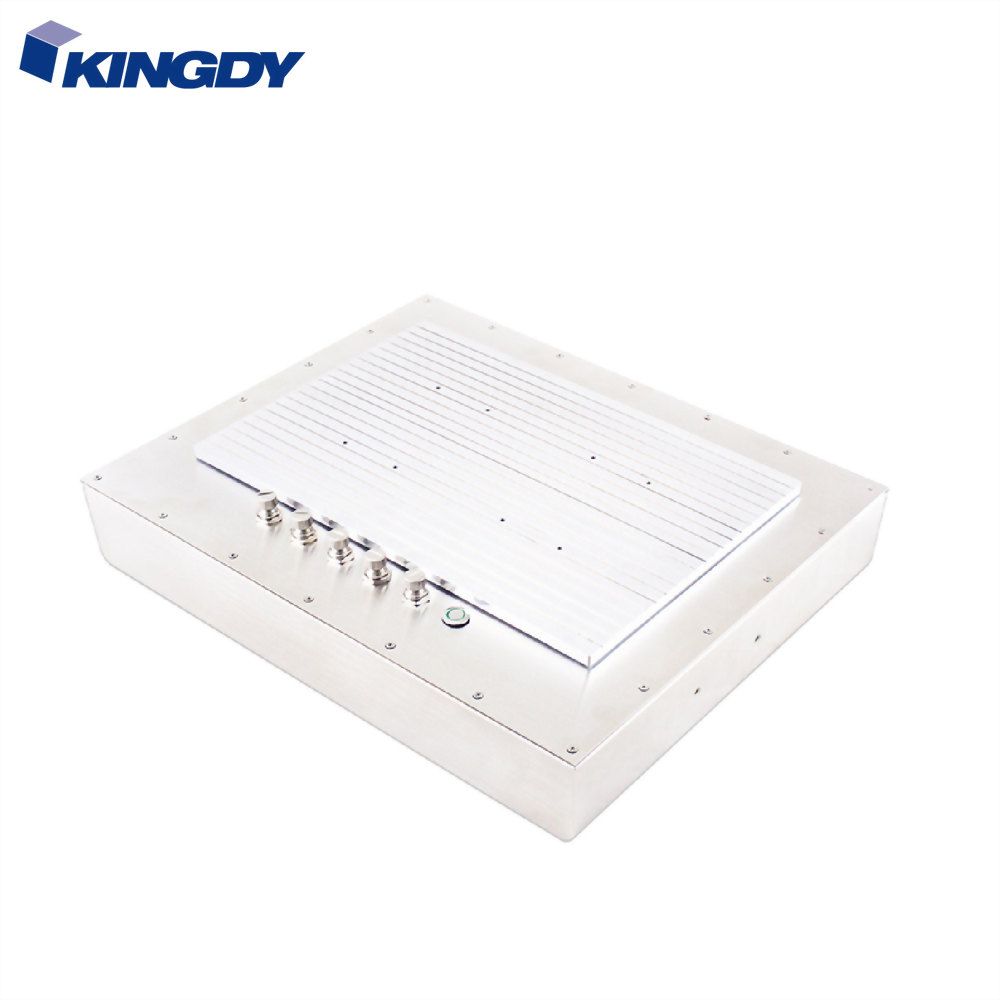

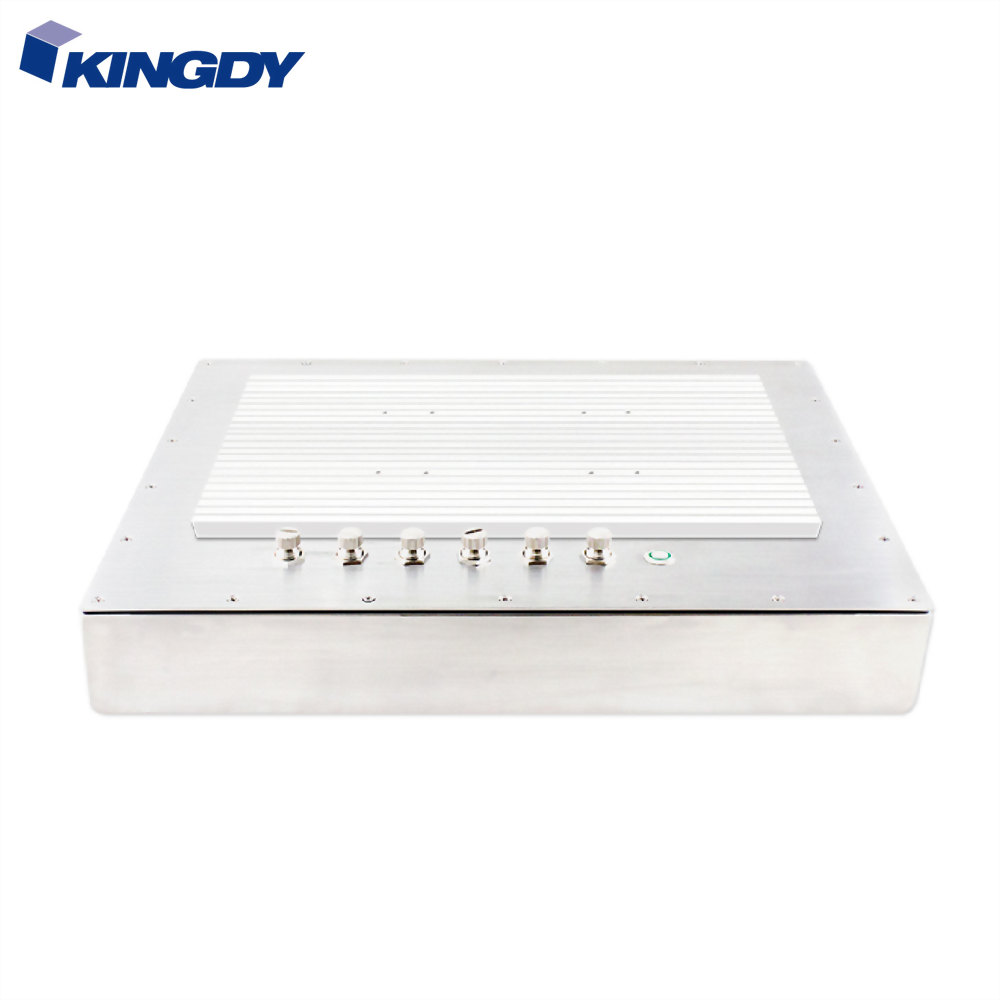

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

M12 RS232

2

M12 USB 2.0

2

M12 GLAN

2

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1, USB 3.2 Gen 2 x 1, USB 2.0 w/NANO SIM-Holder), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

5 Wires Resistive (Single touch)

Mounting

VESA mount (100x100mm) & Yoke mount

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance

Power adaptor

Full IP67 Waterproof Power adaptor : Specifications may vary by country
