Display for 3:4 Ratio

Display for 16:9 Ratio

Size

15" TFT

17" TFT

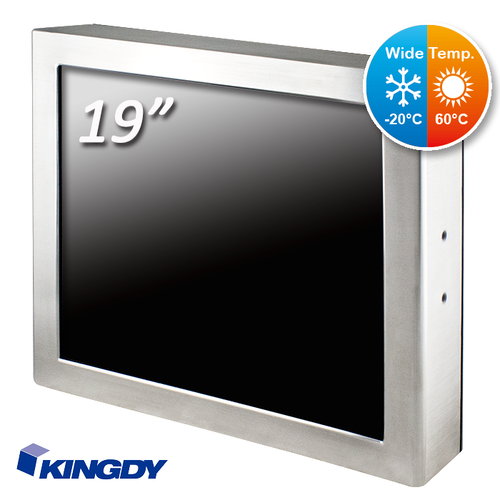

19" TFT

21.5" TFT

24" TFT

Resolution

1024 x 768

1280 x 1024

1280 x 1024

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

300 cd/m2

350 cd/m2

250 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

2500:1

1000:1

1000：1

3000：1

1000：1

View Angle (H/V)

176°/176°

170°/160°

170°/160°

176°/176°

170°/160°

SYSTEM

CPU

Intel® Celeron® Processor J6412 , 2.6GHz, TDP 10W

Memory

2 x DDR4 3200MHz, Dual Channel SO-DIMM, up to 32GB

Storage

1 x SATA 3.0

OS Support

Windows® 11 (64bit)

Windows® 10 (64bit)

Linux (Support by request)

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

M12 RS232

2

M12 USB 2.0

2

M12 GLAN

2

Expansion Slot

M.2

1 x M-key 2242/2280 (PCIe Gen.3x2/SATA interface) Support NVME

1 x B-key 3042 (USB3.1/USB2.0 interface) support W/SIM card slot

1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1)

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

5 Wires Resistive (Single touch)

Mounting

VESA mount (100x100mm) & Yoke mount

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance

Power adaptor

Full IP67 Waterproof Power adaptor : Specifications may vary by country

( 75W / 100 ~ 305V AC input / 12V DC output) / (75W / 100 ~ 305V AC input / 24V DC output)
