Display for 4:3 Ratio

Size

12.1" TFT

15" TFT

17" TFT

19" TFT

Resolution

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

Colors

16.7M

16.7M

16.7M

16.7M

Luminance

350 cd/m2

300 cd/m2

350 cd/m2

250 cd/m2

Contrast Ratio

800:1

2500:1

1000:1

1000：1

View Angle (H/V)

160°/160°

176°/176°

170°/160°

170°/160°

Display for 16:9 Ratio

Size

15.6" TFT

17.3" TFT

18.5" TFT

21.5" TFT

24" TFT

Resolution

1366 x 768

1920 x 1080

1920*1080

1366 x 768

1920*1080

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

400 cd/m2

400 cd/m2

400 cd/m2

250 cd/m2

350 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

500：1

700：1

600：1

1000：1

1000：1

3000：1

1000：1

View Angle (H/V)

170°/160°

160°/140°

160°/140°

170°/160°

178°/178°

176°/176°

170°/160°

SYSTEM

CPU

Intel® Mobile 13th Core™ i7-1365URE / i5-1345URE / i3-1315URE, 28W

Memory

Single-channel DDR5 5200 MHz Up to 32 GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)

Linux (Support by request)

TPM

Infineon® SLB 9672VU2.0

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232

2

GLAN

4

HDMI

4

USB 3.2 Gen2

4

Expansion Slot

M.2

1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280

1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042

1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230

MECHANICAL & ENVIRONMENTAL

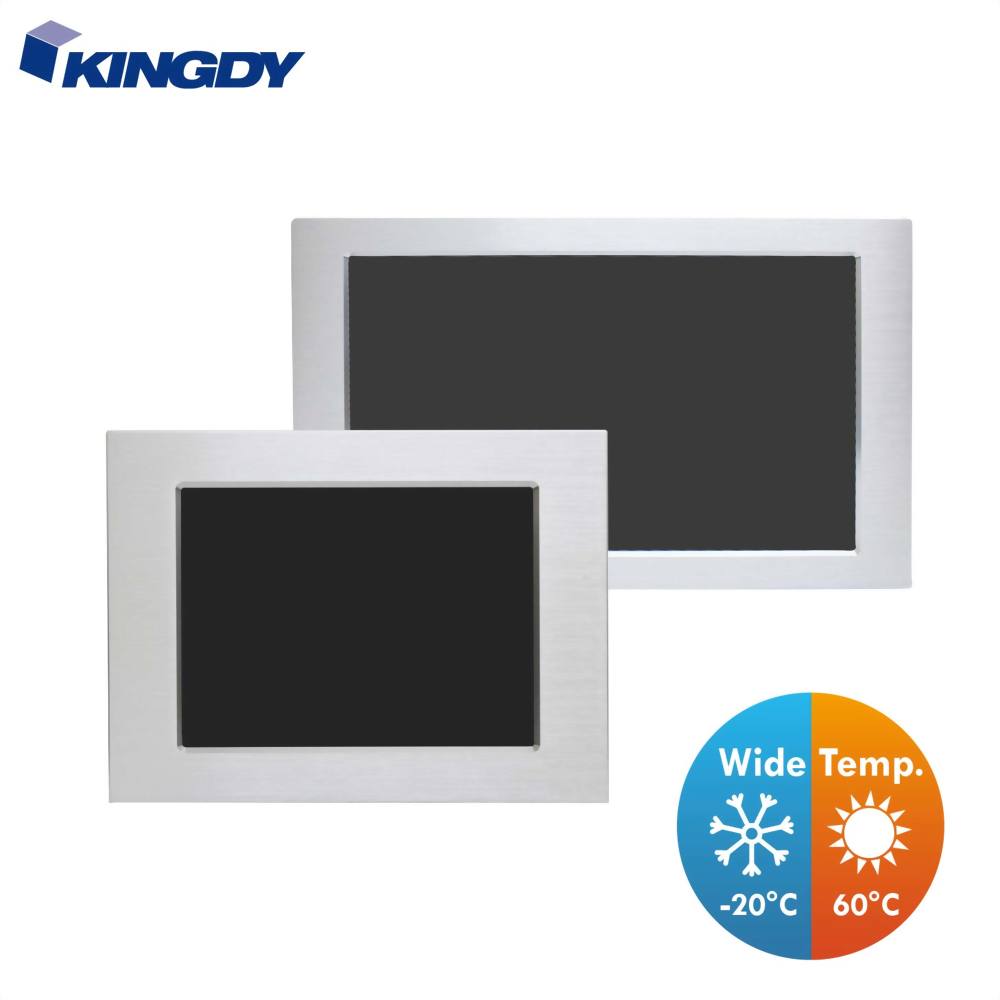

Operation Temp.

-20 ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

5 Wires Resistive (Single touch)

Mounting

VESA mount (75 X 75 mm) / (100 X 100 mm) & Panel mount & Clip mount

Power Supply

3 Pin Power Terminal Block for DC-in 12~24V

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance
