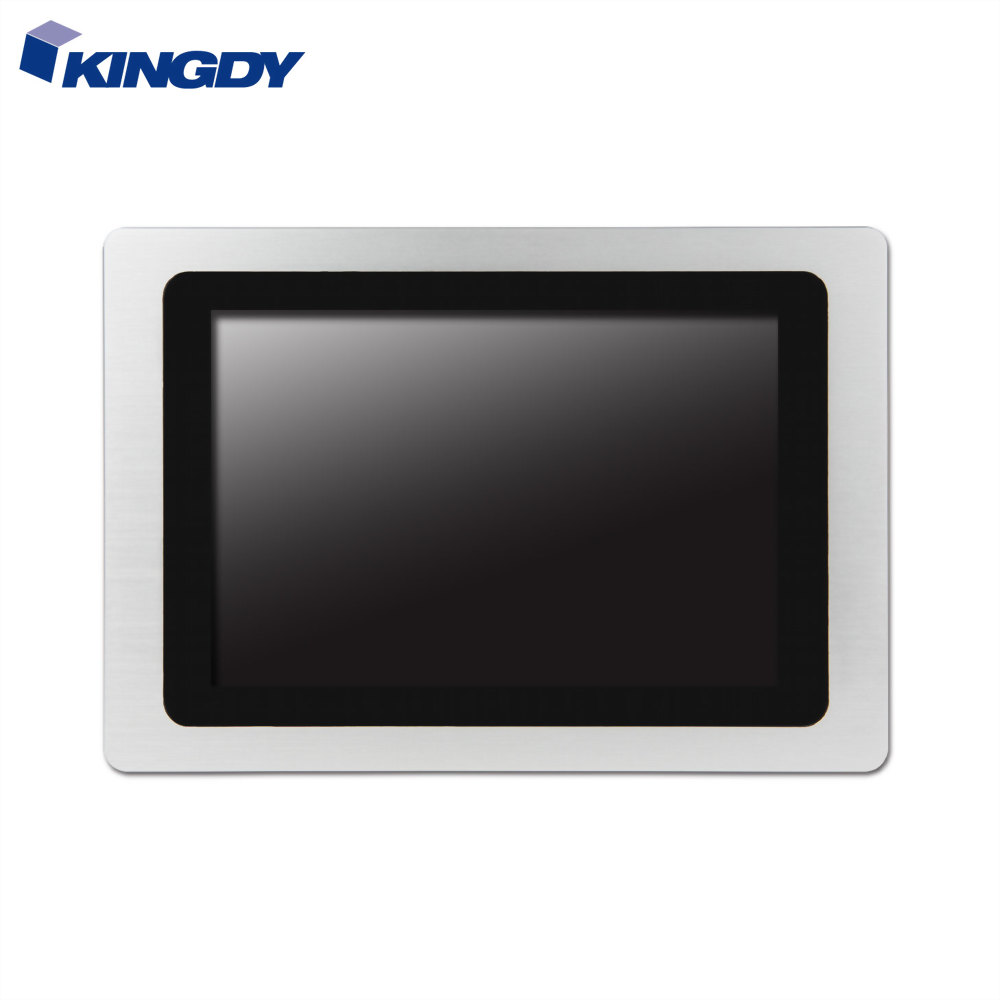

Display for 3:4 Ratio

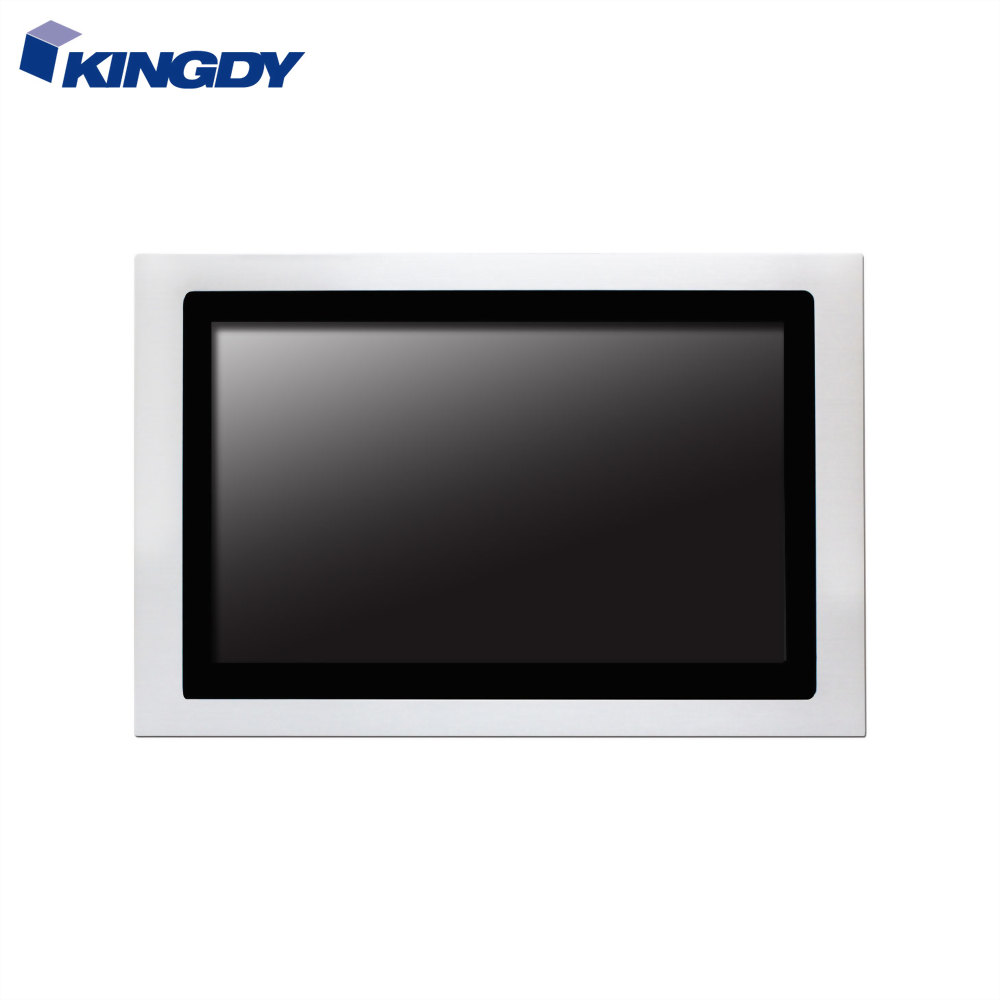

Display for 16:9 Ratio

Size

15" TFT

17" TFT

19" TFT

15.6" TFT

21.5" TFT

24" TFT

Resolution

1024 x 768

1280 x 1024

1280 x 1024

1366 x 768

1920 x 1080

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

300 cd/m2

350 cd/m2

250 cd/m2

400 cd/m2

400 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

2500:1

1000:1

1000：1

500：1

700：1

3000：1

1000：1

View Angle (H/V)

176°/176°

170°/160°

170°/160°

170°/160°

160°/140°

176°/176°

170°/160°

SYSTEM

CPU

Intel® IOTG Alder Lake-N Processor N97 / i3-N305, QC, 12W

Memory

DDR5 4800 MT/s SODIMM Slot up to 16GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise LTSC (64-bit, 24H2)

Linux (Support by request)

TPM

Infineon SLB9672VU2.0

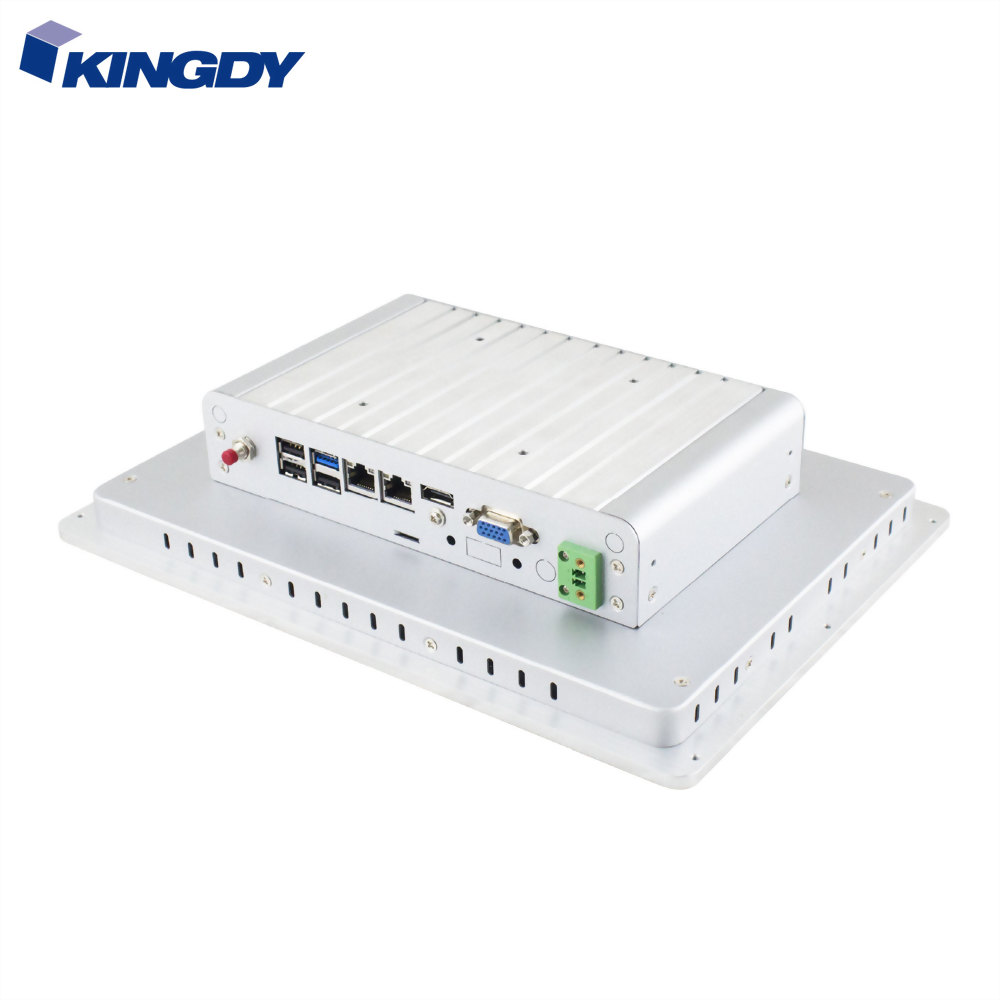

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232/422/485

1

USB 3.2 Gen 1

2

RS232

1

USB 3.2 Gen 2

2

HDMI

1

AUDIO

1

GLAN

2

DP

1

Expansion Slot

M.2

1 x M.2 B key (SATA/PCIe x1), 2242/3042/2280

1 x M.2 E key (PCIe x1, USB 2.0), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

15" / 17" / 19"：PCT / 5W (Single touch)

15" / 15.6" / 17" / 19" / 21.5" / 24"：Projected Capacitive Multi-Touch Panel

Mounting

VESA mount (100x100mm) & Panel mount & Clip mount

Power Supply

DC-in 9~36V 3P Power terminal block

WIFI Optional

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance
