Display for 4:3 Ratio

Display for 16:9 Ratio

Size

10.4" TFT

15" TFT

17" TFT

19" TFT

21.5" TFT

24" TFT

Resolution

1024 x 768

1024 x 768

1280 x 1024

1280 x 1024

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

350 cd/m2

300 cd/m2

350 cd/m2

250 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

900:1

2500:1

1000:1

1000：1

3000：1

1000：1

View Angle (H/V)

150°/150°

176°/176°

170°/160°

170°/160°

176°/176°

170°/160°

SYSTEM

CPU

Intel® Mobile 13th Core™ i7-1365URE / i5-1345URE / i3-1315URE, support Wide operating temperature

Memory

Single-channel DDR5 5200 MHz Up to 32 GB

Storage

1 x SATA 3.0

OS Support

Windows 10 IoT Enterprise 2021 LTSC (64-bit, 21H2)

Windows 11 IoT Enterprise (64-bit, 23H2, Pre-scan)

Linux (Support by request)

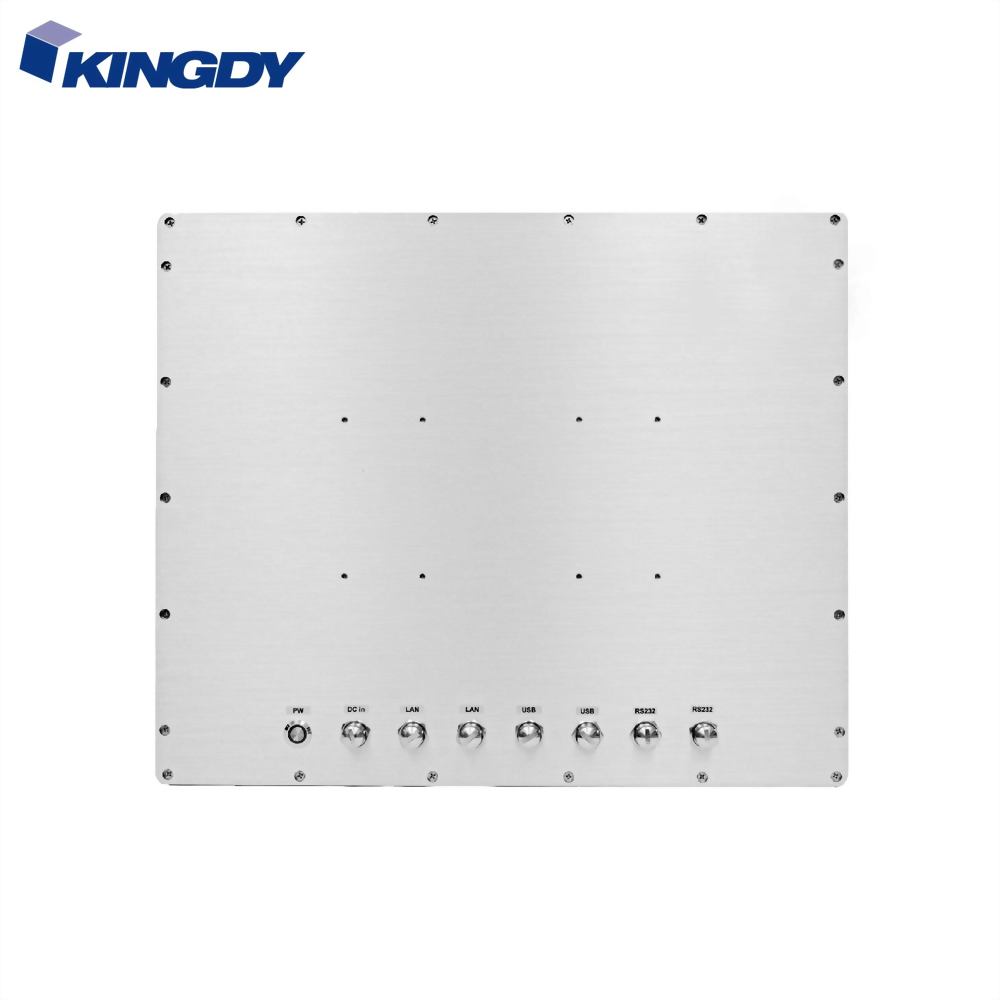

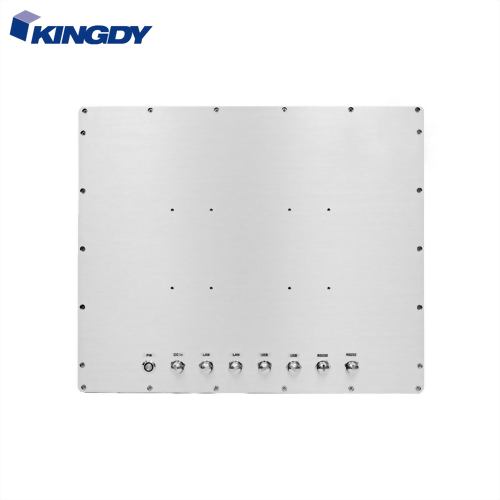

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

M12 RS232

2

M12 GLAN

2

M12 USB 2.0

2

Expansion Slot

M.2

1 x M.2 M key (PCIe Gen4 x4 NVMe), 2280

1 x M.2 B key (PCIe x1, USB 2.0, w/NANO SIM-Holder), 2242/3042

1 x M.2 E key (PCIe x1, USB 2.0, w/CNVi), 2230

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

True flat PCT / 5 wires resistive

Mounting

Yoke Mount / VESA Mount

Power Supply

Full IP67 Waterproof Power Adapter: 12V/24V default; 9–36V input supported. Customization by customer.

Optional

Panel Type

High Brightness LCD Panel: Available in various sizes and brightness specifications.
Please inquire for available options and custom configurations

WIFI

External Antenna (Wi-Fi): Supports M.2 Wi-Fi module with external antenna connection for enhanced signal performance

Power adaptor

Full IP67 Waterproof Power adaptor : Specifications may vary by country

( 150W / 100 ~ 305V AC input / 12V DC output) / (150W / 100 ~ 305V AC input / 24V DC output)
