Display for 3:4 Ratio

Display for 16:9 Ratio

Size

15" TFT

17" TFT

19" TFT

15.6" TFT

21.5" TFT

24" TFT

Resolution

1024 x 768

1280 x 1024

1280 x 1024

1366 x 768

1920 x 1080

1920*1080

1920*1080

Colors

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

16.7M

Luminance

300 cd/m2

350 cd/m2

250 cd/m2

400 cd/m2

400 cd/m2

250 cd/m2

250 cd/m2

Contrast Ratio

2500:1

1000:1

1000：1

500：1

700：1

3000：1

1000：1

View Angle (H/V)

176°/176°

170°/160°

170°/160°

170°/160°

160°/140°

176°/176°

170°/160°

SYSTEM

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

2 x 204-pin DDR3L SODIMM up to 8 GB

Storage

1 x SATA 2.0 2.5” HDD / SSD

OS Support

Windows 10 Pro / Windows 10 IoT

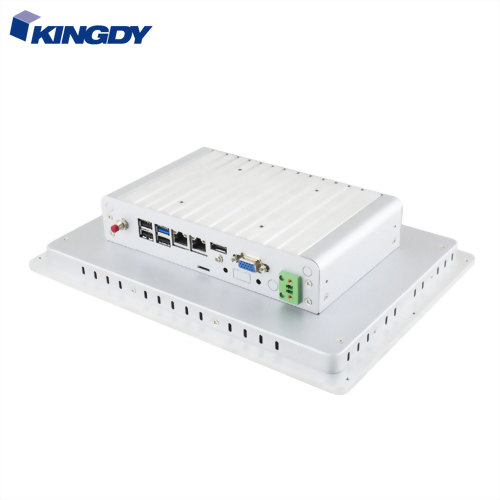

I/O Ports

⁕ The I/O interface shown may vary depending on the selected motherboard.

RS232

1

USB 2.0

4

RS232/422/485

1

Audio

1 x Line-out / Line-in / Mic-in

HDMI

1

VGA

1

GLAN

2

Expansion Slot

Mini PCI-E

1 x Full size Mini PCI-E / WiFi optional

MECHANICAL & ENVIRONMENTAL

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Form Factor

Touch Screen

15" / 17" / 19"：PCT / 5W(Single touch)

15" / 15.6" / 17" / 19" / 21.5" / 24"：Projected Capacitive Multi-Touch Panel

Mounting

VESA mount (100x100mm) & Panel mount & Clip mount

Power Supply

3 Pin power terminal block for DC in 12V / 19V / 24V
