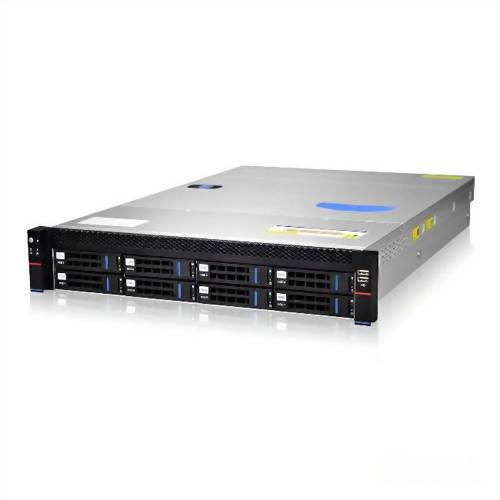

Intel 3rd Gen Xeon 2U Rackmount Server

● Intel 3rd Gen Xeon Dual Socket LGA-4189(Socket P+) Scalable processors
● 18 x DDR4 3200 Mhz RDIMM/LRDIMM ECC up to 4TB
● 2 x GLAN, 1 x VGA.
● 4 x PCI e x 16, 2 x PCI e x 8, 1 x M Key, 14 x SATA 3.
● 8 Hot-Swap 2.5” / 3.5’ SATA 3.0 HDD
● 850W Redundant Power Supply
Model : EC122SR

Features

● Intel 3rd Gen Xeon Dual Socket LGA-4189(Socket P+) Scalable processors

18 x DDR4 3200 Mhz RDIMM/LRDIMM ECC up to 4TB

2 x GLAN, 1 x VGA.

● 4 x PCI e x 16, 2 x PCI e x 8, 1 x M Key, 14 x SATA 3.

● 8 Hot-Swap 2.5” / 3.5’ SATA 3.0 HDD

● 850W Redundant Power Supply

Specifications

Model No.

                EC122SR

System

CPU

3rd Gen Intel Xeon Scalable processors

Dual Socket LGA-4189(Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s

Chipset

Intel C621A

Memory

18 x DIMM slots 3DS ECC LRDIMM DDR4 3200Mhz; ECC RDIMM, DDR4 3200Mhz Up to 4TB

H/W Monitor

Smart Fan

3 x 80 mm ball bearing system fan with PWM controlled

TPM

Controller

                      TPM header

I/O Ports

GLAN

2 x Intel i350 Gigabit Ethernet LAN Ports

USB

4 x USB 3.2 Gen

RS232

1

VGA

1

Storage Device

Hot-Swap

8 Hot Swap 2.5” / 3.5” driver Bays

14 SATA3 ports by default

Expansion slot

PCI e 4.0 x 16

4

PCI e 4.0 x 8

2

M.2

1 x M Key( 1 PCI-E 4.0 x 4 ) 2280/22110

Power Requirement

AC Input

850W 2U Redundant Power supply

Mechanical & Environmental

Mounting

2U Rackmount

Operation Temp.

10 ~ 35°C

Storage Humidity

5 ~ 95%, non-condensing

Dimension (W x D x H)

444 x 670 x 87.6mm

Weight

14kg

Software

Software

SuperDoctor 5, KVM with dedicated LAN, SPM,

Intel Node Manager, SSM, IPMI2.0, Watachdog

Ordering Information

EC122SR00003

2U rack mount barebone server , CPU coolers, system coolers, 850W redundant power supply

**Specifications are subject to change without notice.
