Touch Panel PC | True Flat

IP series-Full IP65 True Flat Touch Panel PCs boasted by kingdy are made by 6 sides seal SUS340 stainless steel and the I/O ports are adopt M12 waterproof connector. Besides full IP65 waterproof function, the true flat touch panel pcs equip 10 point touch panel, let customer using more convenient. The appearance of IP series look like square, but it appears compact and grace. Compare with Full IP65 WP series, the true flat design of IP series let users clean the panel more easily and don’t worry about the water will permeate through the touch panel and make touch panel become damage. Seamless design make it easy to clean and maintain. Just wiping the touch panel carefully, the oli and dusty the panel will be cleaned. The users are not afraid of the dusty will attach on the panel gap.



These types of full stainless steel IP65 touch panel pc can prevent from water, oil, dusty and any corrosive material. The users can flush the touch panel pc with directly water. It is very suitable to install outdoor or some harsh environments full of chemical material or full of oil…etc. It is more suitable for food processing factories where need to according to requirements of food hygiene and safety. IP series -in addition to apply in general industrial working conditions, it can apply in food processing , chemical, petrochemical, pharmaceutical, butchery and mining industries,,etc.- the environment is more serious than before.



The user can choose different I/O ports and power voltage they needs and choose the CPUs which own all kinds of efficiency -from power saving but low efficiency to multi-working but high efficiency. Of course, it is very important to decides the memory capacity. The memory capacity our mainboard can support is from min. 4G

to max. 16G. Most of our touch panel pcs are fanless design which can make maintain and clean more easily , but also avoiding the instability of the system  which the pcs’ temperature is rising cause by malfunction of cpu fans. Expect, traditional panel size-15”,17”,17”- can be chosen, kingy also develop small size -12.1”-let user have much choice and applications.



Currently, our main system products is x86 Microsoft window systems. These let users are accustomed to using widows systems without learn or acquire new operating systems and make it easily to use. User can develop new software they needs to let our true flat touch panel pcs can be applied widely and more close to the needs of customers.

View:

12.1" 5W / PCAP Panel PC (4)

Full IP65 True Flat Touch Panel PC;Backlight: LED;Resolution:800 x 600 / 1024 x 768;Colors:16.2M;Luminance (cd/m2):300 /500;Contrast Ratio:600:1 /700:1;Viewing Angle (H/V°):160/120 / 160/160;Touch Screen: PCAP/ 5W

15.6" PCAP touch Panel PC (4)

Fanless design and compact design;7th Gen Intel® Core™ i3/i5/i7® CPU;Resolution 1920 x 1080 & 1336 x 768 dpi;PCAP touch screen solution;Fully IP65 stainless steel chassis;2 x USB , 2 x RS232 , 2 x LAN;VESA Mounting & Yoke Mounting;316 for stainless steel Enclosure optional

15" 5W / PCAP Panel PC (5)

Full IP65 True Flat Touch Panel PC;Backlight: LED;Resolution:1024 x 768
;Colors:16.2M;Luminance (cd/m2):400;Contrast Ratio:700:1;Viewing Angle (H/V°):160/120
Touch Screen: PCAP / 5W

17" 5W / PCAP touch Panel PC (5)

Full IP65 True Flat Touch Panel PC;Backlight: LED;Resolution:1280 x 1024
;Colors:16.7M;Luminance (cd/m2):350;Contrast Ratio:1000:1;Viewing Angle (H/V°):140/170
Touch Screen: PCAP/5W

19" 5W / PCAP touch Panel PC (5)

Full IP65 True Flat Touch Panel PC;Backlight: LED;Resolution:1280 x 1024
Colors:16.7M;Luminance (cd/m2):250;Contrast Ratio:1000:1;Viewing Angle (H/V°):170/160;
Touch Screen: PCAP;5W

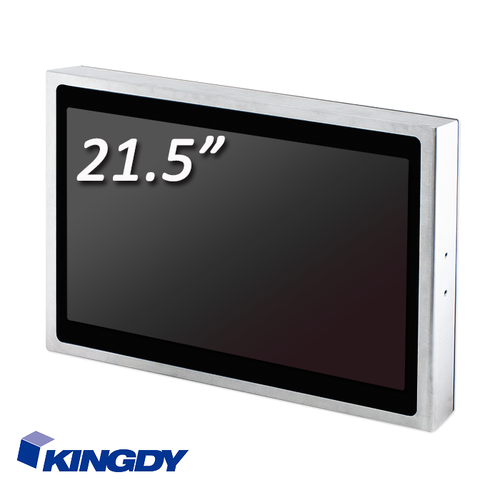

21.5" PCAP touch Panel PC (3)

Full IP65 True Flat Touch Panel PC;Backlight: LED;Resolution:1920 x 1080
Colors:16.7M;Luminance (cd/m2):300;Contrast Ratio:3000:1;Viewing Angle (H/V°):178/178
Touch Screen: PCAP/5Wj; I/O ports:2 x POE; 2 x LAN; 1 x USB; 1 x RS232

24" PCAP touch Panel PC (4)

Fanless design and compact design;7th Gen Intel® Core™ i3/i5/i7® CPU;Resolution 1920 x 1080 dpi;PCAP touch screen solution;Fully IP65 stainless steel chassis;2 x USB , 2 x RS232 , 2 x LAN;VESA Mounting & Yoke Mounting;316 for stainless steel Enclosure optional
