Model No.

IP240P103/104/105/106S

System

CPU

11^th Gen Intel® Core™ Celeron 6305E / i3 1115G4E / i5 1145G7E / i7 1185G7E processors

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

TPM

Controller

Infineon SLB9670VQ2.0

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 3.0

Expansion

M.2

1 x M.2 M key(PCI e Gen x 4 NVMe) 2280

1 x M2 B Key ( PCI e x 1 , USB 2.0 w/NANO SIM Holder SATA 3.0) 2242/3042

 1 x M.2 E key (PCI e x 1, USB 2.0) 2230

Power Requirement

Power Requirement

DC in 12 ~ 24V ( OCP & OVP)

Touch Screen

Touch Screen

True Flat PCT

OS support

OS support

Win Pro 10 / Window 10 IoT / Linux Kernel 5.4 Ubuntu LTS

Display

Size

24" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

250 cd/m²

Contrast Ratio

1000:1

View Angle (H/V)

176°/170°

Mechanical & Environmental

Heatsink

Back side

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

620 x 570 x 65 mm

Weight

TBD

Optional

P/N: 3100400001

External antenna ( WIFI)

5GB LTE module

P/N: 2351215001

Full IP65 Waterproof Power adaptor with European power cord ( 132W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352415002

Full IP65 Waterproof Power adaptor with European power cord (150W / 90 ~ 295V AC input / 24V DC output)

P/N: 2351215002

Full IP65 Waterproof Power adaptor with US power cord ( 132W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352415003

Full IP65 Waterproof Power adaptor with US power cord (150W / 90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3120400001

RFID Reader RS232 interface (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

Optional HB Panel

IP240P103/104/105/106J

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000 cd/m²

Contrast Ratio

1000:1

Viewing Angle (H/V)

173°/165°

Order information

IP240P103S04128

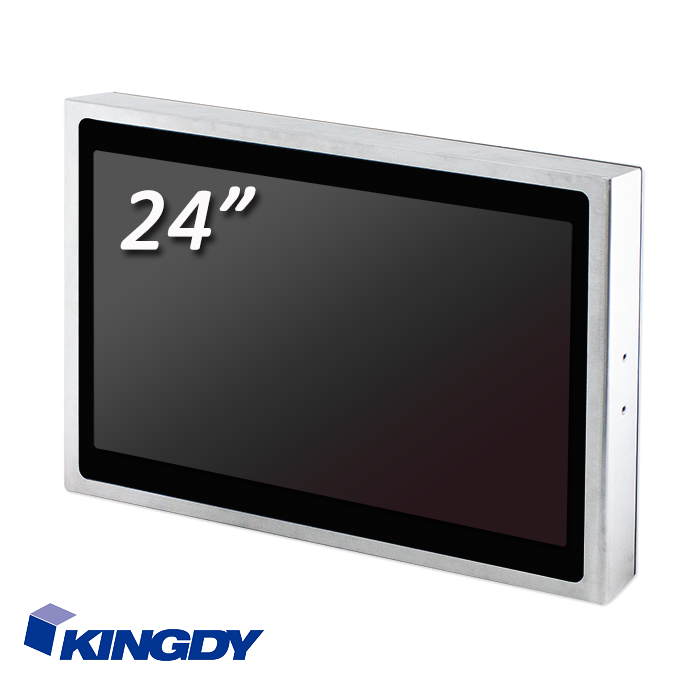

24” stainless steel panel PC, Intel Celeron 6305E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

IP240P103J04128

24” stainless steel panel PC, Intel Celeron 6305E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter, 1000nit

IP240P104S04128

24” stainless steel panel PC, Intel i3 1115G4E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

IP240P104J04128

24” stainless steel panel PC, Intel i3 1115G4E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter, 1000nit

IP240P105S04128

24” stainless steel panel PC, Intel i5 1145G7E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

IP240P105J04128

24” stainless steel panel PC, Intel i5 1145G7E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter, 1000nit

IP240P1046S04128

24” stainless steel panel PC, Intel i7 1185G7E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

IP240P1046J04128

24” stainless steel panel PC, Intel i7 1185G7E processor, True flat PCT, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter, 1000nit

**Specifications are subject to change without notice.
