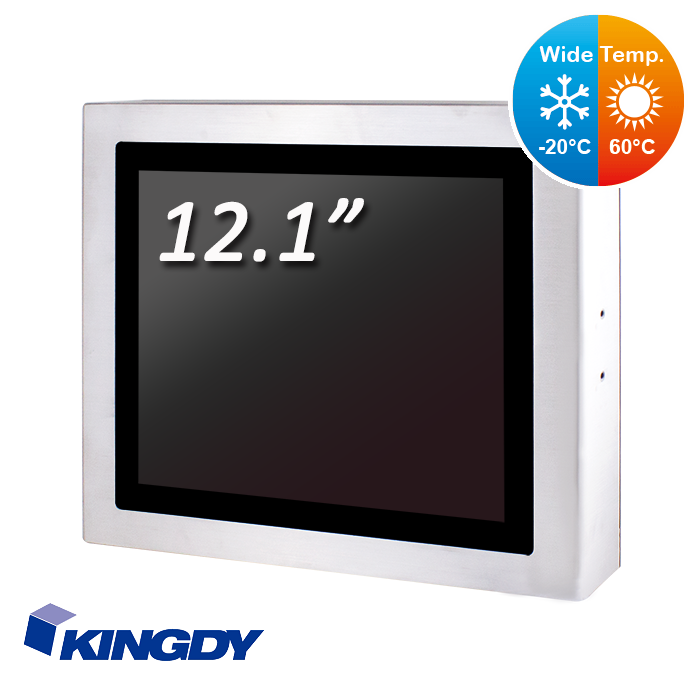

12.1 Touch IPC (Wide Temp.)

● Fanless and rugged design
● Intel® Atom™ x 5 E3940 Processor
● Wide Temperature & sunlight readable solution: -20°C ~ 60°C
● Resolution 1024 x 768 dpi
●True Flat PCT / 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless chassis
● All IP65 M12 waterproof connectors
● 2 x USB, 2 x RS232, 2 x GLAN
● VESA mount & Yoke mount
Model : IP122P081W, IP122R081W

Model No.

IP122P081W

IP122R081W

System

CPU

Intel® Atom™ x 5 E3940 Processor up to 1.8Ghz

Memory

1 x 204-pin SODIMM Single-channel DDR3L 1866/1600 MHz up to 8GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

2 x Full size

Power Requirement

Power Requirement

DC in 12 ~ 24V

Touch Screen

Touch Screen

True Flat PCT touch

5W (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

12.1" TFT (4:3)

Resolution

1024 x 768

Colors

16.7M

Luminance

350 cd/m2

Contrast Ratio

800 : 1

View Angle (H/V)

160°/160°

Mechanical & Environmental

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount ( 100 X 100 mm) & Yoke mount

Dimension (WxHxD)

347 x 276 x 57.5 mm

Weight

TBD

Optional

P/N: 310040000A

External antenna ( WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2340000006

HDMI port

P/N: 2320000001

Optical Bonding

P/N: 3080212009

 1 x RS232/422/485 0V/5V/12V support auto flow control

P/N: 302A17005C

1600 cd/m2  High Brightness 12.1” LCD panel 1024 x 768 dpi

Optional HB Panel

IP122P081K

IP122R081K

Resolution

1024 x 768

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

800 : 1

Viewing Angle (H/V)

160°/160°

Ordering Information

IP122P081W04064

12.1” wide temperature stainless steel panel PC, Intel E3940 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP122P081K04064

12.1” wide temperature stainless steel panel PC, Intel E3940 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2, external heatsink

IP122R081W04064

12.1” wide temperature stainless steel panel PC, Intel E3940 processor, True flat 5 wires resistive , 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP122R081K04064

12.1” wide temperature stainless steel panel PC, Intel E3940 processor, True flat 5 Wires resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
