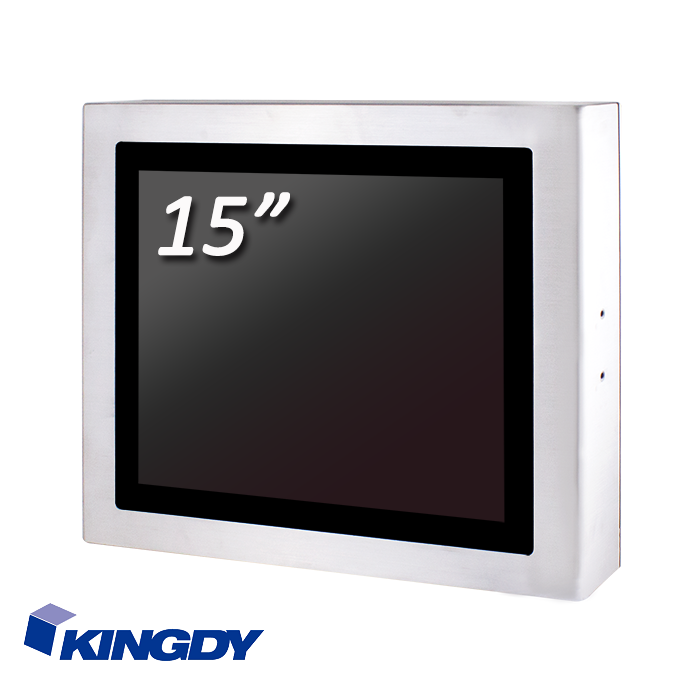

15" J1900 Touch IPC

● Fanless and rugged design
● Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor
● Resolution 1024 x 768 dpi
● True Flat PCT / 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless chassis
● All IP65 M12 waterproof connectors
● 3 x USB, 2 x RS232, 1 x GLAN
● VESA mount & Yoke mount
Model : IP150P005, IP150P030S, IP150R005, IP150R030S

Model No.

IP150P005S

IP150R005S

IP150P030S

IP150R030S

System

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

1

RS232/422/485

-

1

GLAN

1

2

USB

3

2

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

2 x Full-size

Power Requirement

Power Requirement

DC in 12V

DC in 24V

Touch Screen

Touch Screen

 PCT

5W (one touch)

PCT

5W (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2M

Luminance

300 cd/m2

Contrast Ratio

2000:1

View Angle (H/V)

176°/176°

Mechanical & Environmental

I/O ports

Back side

Operation Temp

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

438 x 335 x 63 mm

Weight

TBD

Optional

P/N: 3100400001

External antenna ( WIFI)

P/N: 2340000003

Second GLAN port
for IP150P030S, IP150R030S

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
 ( 60W /
90 ~ 295V AC input / 12V DC output)
for IP150P005S, IP150R005S

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)
for IP150P030S, IP150R030S

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
 ( 60W /
90 ~ 295V AC input / 12V DC output)
for IP150P005S, IP150R005S

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)
for IP150P030S, IP150R030S

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port
for IP150P030S, IP150R030S

P/N: 3120400001

RFID Reader RS232 interface
(
13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A170051

1600 cd/m2  High Brightness 15” LCD panel 1024 x 768 dpi

Optional HB Panel

IP150P005J

IP150R005J

IP150P030J

IP150R030J

Resolution

1024 x 768

Color

16.2M

Luminance

1000 cd/m2

Contrast Ratio

2000 : 1

Viewing Angle (H/V)

176°/176°

Ordering Information

IP150P005S04064

15” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter

IP150P005J04064

15” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

IP150R005S04064

15” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter

IP150R005J04064

15” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

IP150P030S04064

15” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD,24V DC in power adapter

IP150P030J04064

15” stainless steel panel PC, Intel J1900 processor, PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

IP150R030S04064

15” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

IP150R030J04064

15” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
