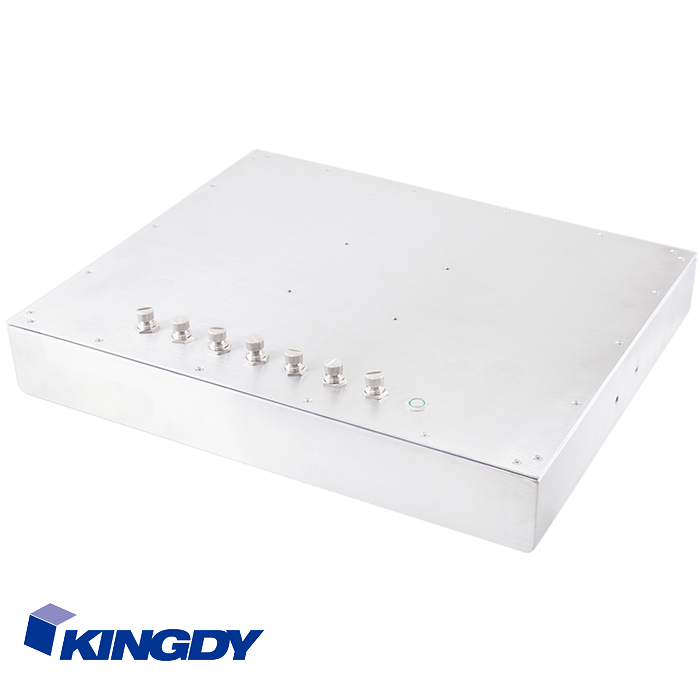

17" J1900 Touch IPC

● Fanless and rugged design
● Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor
● Resolution 1280 x 1024 dpi
● True Flat PCT / 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 3 x USB, 2 x RS232, 1 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : IP170P005, IP170P030S , IP170R005, IP170R030S

Model No.

IP170P005S

IP170R005S

IP170P030S

IP170R030S

System

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

1

RS232/422/485

-

1

GLAN

1

2

USB

3

2

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

2 x Full-size

Power Requirement

Power Requirement

DC in 12V

DC in 24V

Touch Screen

Touch Screen

PCT

5W (one touch)

PCT

5W  (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

17" TFT (4:3)

Resolution

1280 x 1024

Colors

16.2M

Luminance

350 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

170°/160°

Mechanical & Environmental

I/O ports

Back side

Operation Temp

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

470 x 390 x 67 mm

Weight

10 kg

Optional

P/N: 3100400001

External antenna ( WIFI)

P/N: 2340000003

Second GLAN port
for IP170P030S, IP170R030S

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)
for IP170P005S, IP170R005S

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)
for IP170P030S, IP170R030S

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)
for IP170P005S, IP170R005S

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)
for IP170P030S, IP170R030S

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port
for IP170P030S, IP170R030S

P/N: 3120400001

RFID Reader RS232 interface (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A170051

1600 cd/m2  High Brightness 17” LCD panel 1280 x 1024 dpi

Optional HB Panel

IP170P005J

IP170R005J

IP170P030J

IP170R030J

Resolution

1280 x 1024

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/165°

Ordering Information

IP170P005S04064

17” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter

IP170P005J04064

17” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

IP170R005S04064

17” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter

IP170R005J04064

17” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

IP170P030S04064

17” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

IP170P030J04064

17” stainless steel panel PC, Intel J1900 processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

IP170R030S04064

17” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD,24V DC in power adapter

IP170R030J04064

17” stainless steel panel PC, Intel J1900 processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
