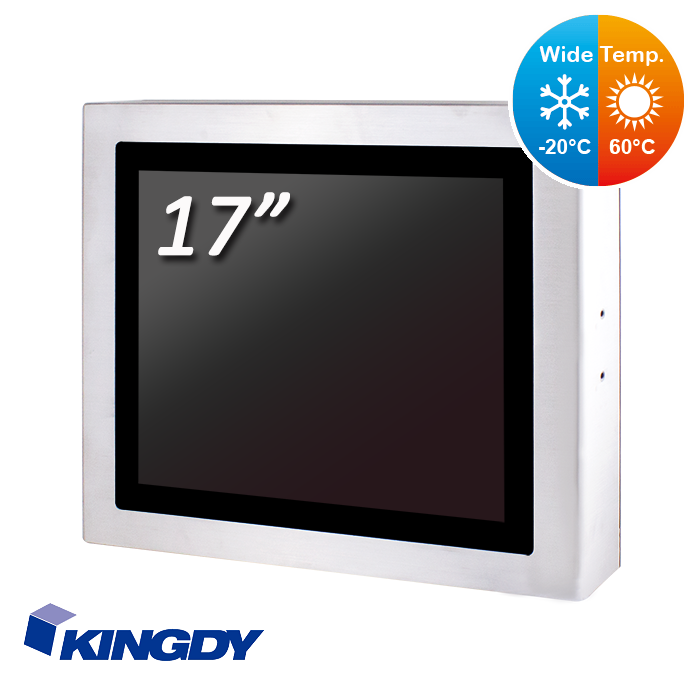

17" Touch IPC (Wide Temp.)

● Fanless and rugged design
● Intel® Atom™ x 5 E3940 Processor
● Wide Temperature & sunlight readable solution: -20°C ~ 60°C
● Resolution 1280 x 1024 dpi
● True Flat PCT / 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 2 x USB, 2 x RS232, 2 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : IP170P081W, IP170R081W

Model No.

IP170P081W

IP170R081W

System

CPU

Intel® Atom™ x 5 E3940 Processor up to 1.8Ghz

Memory

1 x 204-pin SODIMM Single-channel DDR3L 1866/1600 MHz up to 8GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

2 x Full-size

Power Requirement

Power Requirement

DC in 12V ~ 24V

Touch Screen

Touch Screen

 PCT

5W (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

17" TFT (4:3)

Resolution

1280 x 1024

Colors

16.2M

Luminance

350 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

170°/165°

Mechanical & Environmental

I/O ports

Back side

Operation Temp

-20°C ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

470 x 390 x 67 mm

Weight

10 kg

Optional

P/N: 310040000A

External antenna ( WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3080212009

 1 x RS232/422/485 0V/5V/12V support auto flow control

P/N: 302A170051

1600 cd/m2  High Brightness 17” LCD panel 1280 x 1024 dpi

Optional HB Panel

IP170P081K

IP170R081K

Resolution

1280 x 1024

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/165°

Ordering Information

IP170P081W04064

17” wide temperature full IP65 stainless steel panel PC, true flat PCT, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP170P081K04064

17” wide temperature full IP65 stainless steel panel PC, true flat PCT, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2, external heatsink

IP170R081W04064

17” wide temperature full IP65 stainless steel panel PC, true flat 5W resistive, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP170R081K04064

17” wide temperature full IP65 stainless steel panel PC, true flat 5W resistive, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
