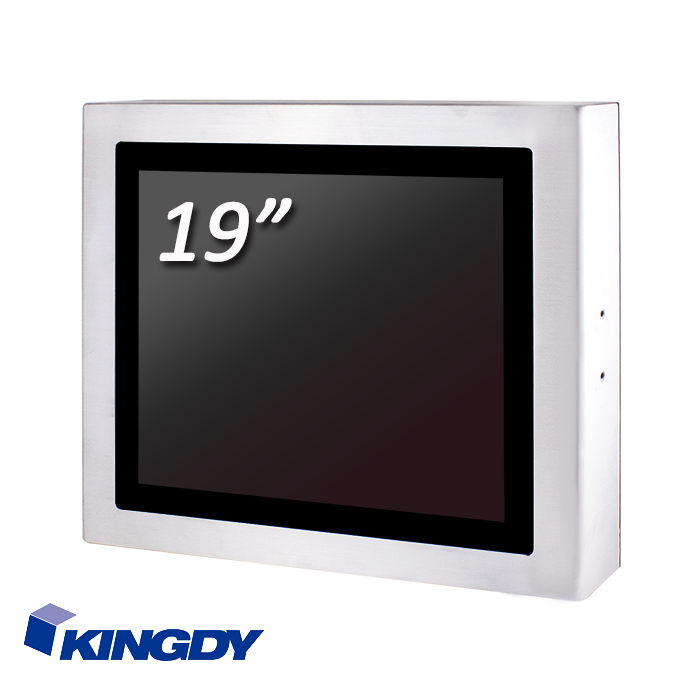

19" 4th Gen Touch IPC

Model No.

IP190P017/020/022S

IP190R017/020/022S

System

CPU

4th Gen Intel® HSW ULT i3 4010U (017) / i5 4300U (020) / i7 4650U (022) CPU (On Board)

Memory

2 x 204-pin DDR3L SODIMM up to 16 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 2.0 2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

Power Requirement

Power Requirement

DC in 24V

Touch Screen

Touch Screen

PCT

5W (one touch)

OS support

OS support

Win Pro 7, 8.1 / Embedded Win 7, 8.1

Display

Size

19" TFT (4:3)

Resolution

1280 x 1024

Colors

16.7M

Luminance

350 cd/m²

Contrast Ratio

1000:1

View Angle (H/V)

170°/160°

Mechanical & Environmental

Heatsink

Back side

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

521 x 434 x 75 mm

Weight

TBD

Optional

P/N: 3100400001

External antenna ( WIFI)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 3120400001

RFID Reader RS232 interface
(13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 2340000006

HDMI port

Optional HB Panel

IP190P017/020/022J

IP190R017/020/022J

Resolution

1280 x 1024

Color

16.7M

Luminance

1000 cd/m²

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/160°

Order information

IP190P017S04064

19” stainless steel panel PC Intel i3 4010U processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190P017J04064

19” stainless steel panel PC Intel i3 4010U processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m²

IP190R017S04064

19” stainless steel panel PC Intel i3 4010U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190R017J04064

19” stainless steel panel PC Intel i3 4010U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m²

IP190P020S04064

19” stainless steel panel PC Intel i5 4300U processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190P020J04064

19” stainless steel panel PC Intel i5 4300U processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m²

IP190R020S04064

19” stainless steel panel PC Intel i5 4300U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190R020J04064

19” stainless steel panel PC Intel i5 4300U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m²

IP190P022S04064

19” stainless steel panel PC Intel i7 4650U processor, PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190P022J04064

19” stainless steel panel PC Intel i7 4650U processor, True flat PCT, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m²

IP190R022S04064

19” stainless steel panel PC Intel i7 4650U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

IP190R022J04064

19” stainless steel panel PC Intel i7 4650U processor, True flat 5W resistive, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m²

**Specifications are subject to change without notice.
