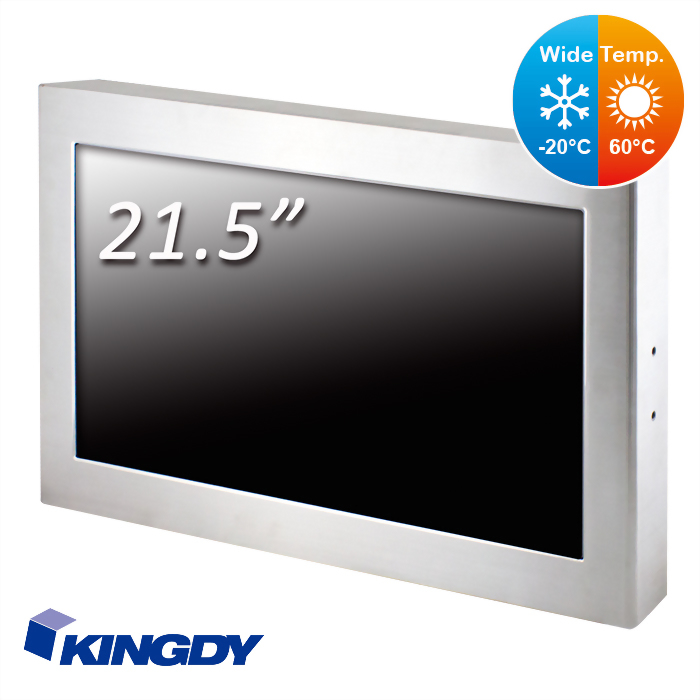

21.5" E3940 / E3930 Touch IPC (WT)

● Fanless and rugged design
● Intel® Atom™ x 5 E3940 / E3930 Processors
● Wide Temperature & sunlight readable solution: -20°C ~ 60°C
● Resolution 1920 x 1080 dpi
● 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 2 x USB, 2 x RS232, 2 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : WP215R081W,WP215R088W

Model No.

WP215R081W

WP215R088W

System

CPU

Intel® Atom™ x 5 E3940 (081) / E3930 (088)Processor up to 1.8Ghz

Memory

1 x 204-pin SODIMM Single-channel DDR3L 1866/1600 MHz up to 8GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

1 x SATA 3.0 2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full size with NANO SIM Holder, 1 x Full size with mSATA

Power Requirement

Power requirement

DC in 12V ~ 24V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

21.5" TFT (16:9)

Resolution

1920 x 1080 dpi

Colors

16.7M

Luminance

350nit

Contrast Ratio

1000 : 1

View Angle (H/V)

178° / 178°

Mechanical & Environmental

I/O ports

Back side

Heatsink

Back side

Operation Temp

-20°C ~ 60°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100 x 100mm) & Yoke mount

Dimension (WxHxD)

560 x 360 x 76 mm

Weight

10.2 kg

Optional

P/N: 310040000A

external antenna (WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord ( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord ( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 2340000004

 1 x RS232/422/485 0V/5V/12V support auto flow control

P/N: 3120400001

RFID Reader RS232 interface (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A17005A

1500 cd/m2  High Brightness 21.5” LCD panel 1920 x 1080 dpi

Optional HB Panel

WP215R081K

WP215R088K

Resolution

1920 x 1080 dpi

Color

16.7M

Luminance

1000 nit

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

178° / 178°

Ordering Information

WP215R081W04064

21.5” wide temperature full IP65 stainless steel panel PC, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

WP215R081K04064

21.5” wide temperature full IP65 stainless steel panel PC, Intel E3940 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

WP215R088K04064

21.5” wide temperature full IP65 stainless steel panel PC, Intel E3930 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

WP215R088W04064

21.5” wide temperature full IP65 stainless steel panel PC, Intel E3930 processor, 4GB DDRIII L So-DIMM., 64GB SSD, DC in power adapter

**Specifications are subject to change without notice.
