24" 7th Gen Touch IPC

● Fanless and rugged design
● 7th Gen Intel® Core™ i3 7100U / i5 7300U / i7 7600U CPU
● Resolution 1920 x 1080 dpi
● 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless chassis
● All IP65 M12 waterproof connectors
● 2 x USB, 2 x RS232, 2 x GLAN
● VESA mount & Yoke mount
Model : WP240R075S, WP240R076S, WP240R077S

Model No.

WP240R075/076/077S

System

CPU

7th Gen Intel® Core™ i3 7100U (075) / i5 7300U (076) / i7 7600U (077) CPU (On Board)

Memory

1 x 260-pin DDR4 2133MHz SODIMM up to 16 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

2

USB

2

Storage

Storage

2 x SATA 3.0 2.5” HDD/SSD

Expansion

Mini PCI-E

2 x Full-size

Power Requirement

Power Requirement

DC in 12 ~ 24V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10 / Embedded Win 10 / Win 10 IoT / Linux Fedora 25, Ubuntu 16.04

Display

Size

24" TFT (16:9)

Resolution

1920 x 1080

Colors

16.7M

Luminance

250 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

173°/165°

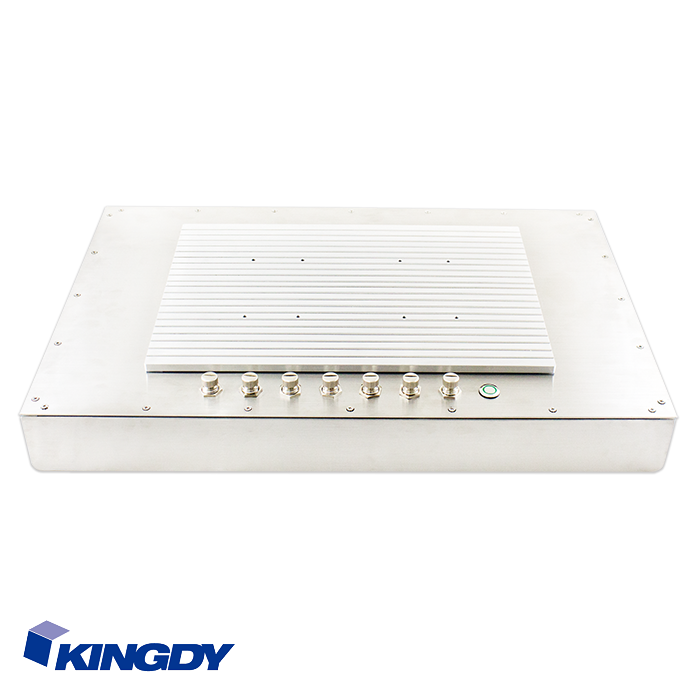

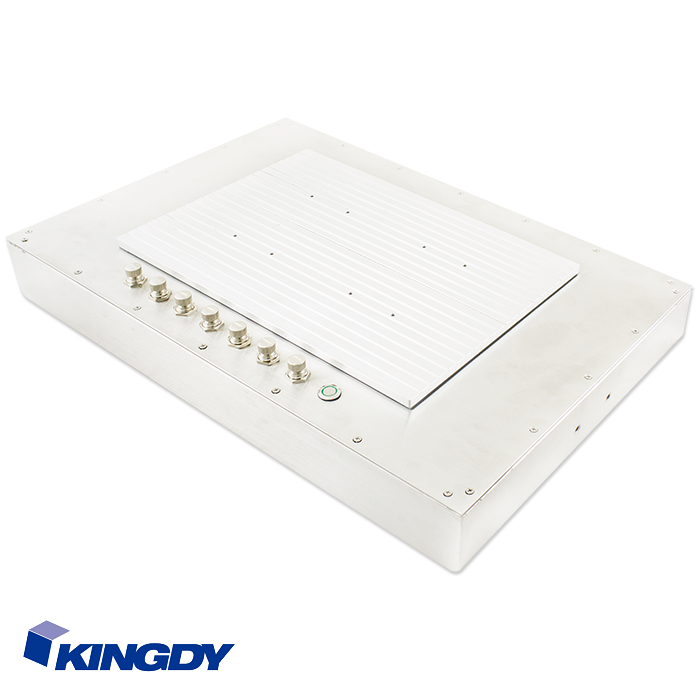

Mechanical & Environmental

Heatsink

Back side

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

620 x 400 x 68 mm

Weight

TBD

Optional

P/N: 3100400001

External antenna (WIFI)

P/N: 2352415002

Full IP65 Waterproof Power adaptor with European power cord
(150W /
90 ~ 295V AC input / 24V DC output)

P/N: 2352415003

Full IP65 Waterproof Power adaptor with US power cord
(150W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351215001

Full IP65 Waterproof Power adaptor with European power cord
(132W /
90 ~ 295V AC input /12V DC output)

P/N: 2351215002

Full IP65 Waterproof Power adaptor with US power cord
( 132W /
90 ~ 295V AC input / 12V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3120400001

RFID Reader RS232 interface
(
13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

Optional HB Panel

WP240R075/076/077J

Resolution

1920 x 1080

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000:1

Viewing Angle (H/V)

173°/165°

Order information

WP240R075S04064

24” stainless steel panel PC, Intel i3 7100U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

WP240R075J04064

24” stainless steel panel PC, Intel i3 7100U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

WP240R076S04064

24” stainless steel panel PC, Intel i5 7300U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

WP240R076J04064

24” stainless steel panel PC, Intel i5 7300U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

WP240R077S04064

24” stainless steel panel PC, Intel i7 7600U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter

WP240R077J04064

24” stainless steel panel PC, Intel i7 7600U processor, 4GB DDR4 So-DIMM., 64GB SSD, DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
