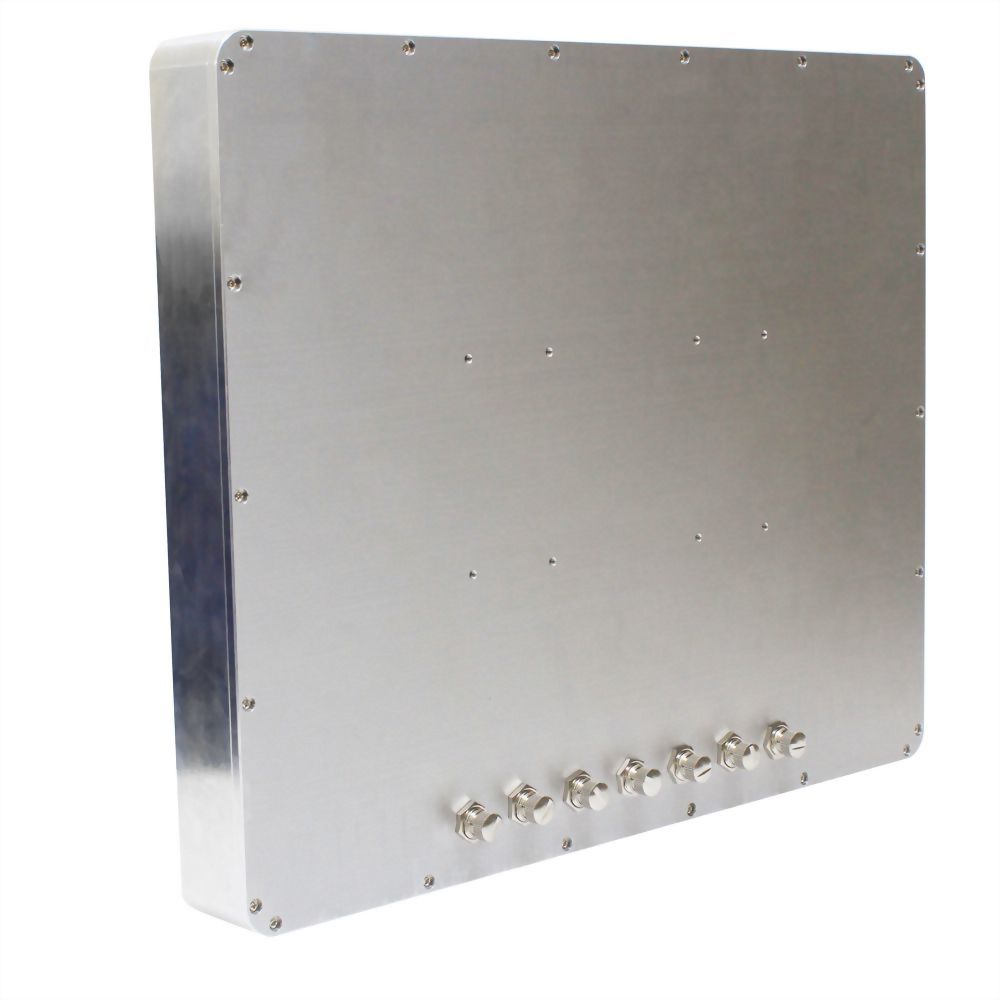

19" Intel J1900 POE True Flat Panel PC-Full IP66

● 2 x POE Lan ports for choice
● Fanless design and compact solution
● Intel® Bay Trail Quad Core J1900 2.0GHz CPU
● Resolution 1280 x 1024 dpi
● True Flat 5 wires resistive / PCAP touch solution
● Aluminum Full IP66 compliant 6-sided with hairy brush
● Waterproof connectors
● 2 x POE, 2 x GLAN, 1 x USB, 1 x RS232
● VESA mounting
Model : GP190P030S;GP190R030S

System
CPU Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor (On Board)
Memory 1 x 204-pin DDR3L SODIMM up to 8 GB
H/W Monitor
Watch Dog Timer

Watch Dog Timer 256 Level

I/O Ports
POE 2
RS232 1
GLAN 2
USB 1
Storage
Storage 1 x SATA 2.0 2.5” HDD/SSD
Expansion
Mini-PCIe

1 x Full size (one w / mSATA)

Power Requirement
Power Requirement DC in 12V/19V/24V (Auto Power On)
Touch Screen
Touch Screen 5W / PCAP
OS support
  Win Pro 7,8,10 ; Embedded Win 7, 8,10
Display
Size 19" TFT (4:3)
Resolution 1280 x 1024
Colors 16.7 M
Luminance ( cd/m2) 250
Contrast Ratio 1000:1
View Angle ( H / V ) 170/160
Mechanical &Environmental
Construction Full IP66 Aluminum Chassis
Operation Temp 0 ~ 45°C
Storage Humidity 10 ~ 90%, non-condensing
Mount VESA mounting(100 X 100 mm)

Dimension (W x H x D mm)&Weight

466 x 391 x 51

Optional
VGA 1
Full IP66 Power Adaptor 1 or 2
No Touch Screen 1
Optinal High Brightness Panel
Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1280 x 1024
Color 16.7 M 16.7 M 16.7 M 16.7 M
Luminance(cd/m2) 1600 1000 1000 800
Contrast Ratio 1000:1 2000:1 1000:1 1000:1
Viewing Angle (H/V°) 170/160 178/178 1000:1 170/160

 **  Specifications are subject to change without notice.

  • 2 x POE Lan ports for choice
  • Fanless design and compact solution
  • Intel® Bay Trail Quad Core J1900 2.0GHz CPU
  • Resolution 1280 x 1024 dpi
  • True Flat 5 wires resistive / PCAP touch solution
  • Aluminum Full IP66 compliant 6-sided with hairy brush
  • Waterproof connectors
  • 2 x POE, 2 x GLAN, 1 x USB, 1 x RS232
  • VESA mounting
