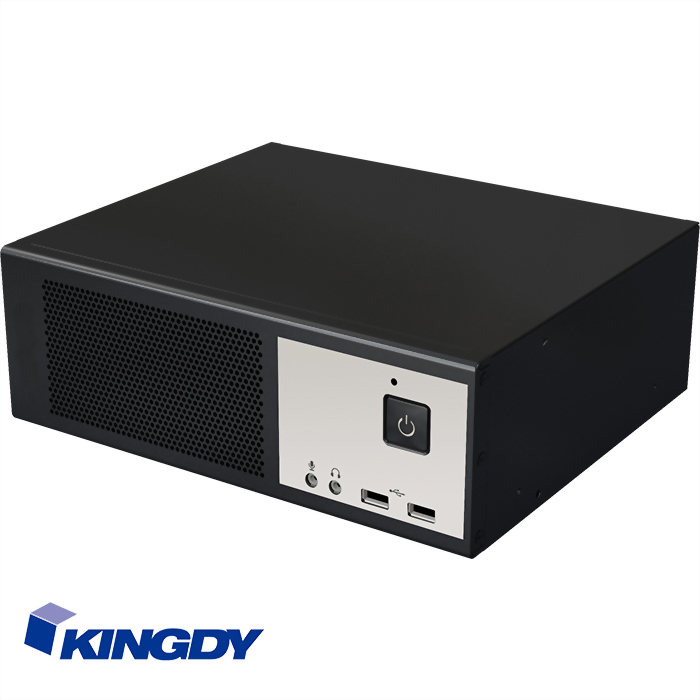

10th Gen Tower PC Expansion Slot

● Fan solution and rugged design
● 10th Gen Intel Pentium Xeon/Core/Celeron/i3/i5/i7 processors
● 3 x GLAN, 4 x USB , 2 x RS232/422/485, 2 x RS232, 2 x DP ++
● 1 x PCI e x 16 slot , 1 x M Key, 1 x E Key, 1 x B Key.
● Wall mount installation
Model : TB223SW,TB224SW,TB225SW,TB226SW,TB227SW,TB228SW


Model No.

TB223SW

 TB224SW

TB225SW

System

CPU

10th Gen Intel Pentium Xeon/Core /Celeron / i3 / i5 / i7 processors up to 65W

CPU Socket

LGA 1200 Socket

Chipset

Intel W480 Express

Intel Q470 Express

Intel H420 Express

Memory

Dual Channel 2 x 260 Pin DDR4 2933Mhz So-DIMM up to 64 GB

H/W Monitor

Watch Dog

                          Timer 256 Level

Security

TPM

                                                                                       fTPM(default) /dTPM2.0

I/O Ports

RS232/422/485

                      2

RS232

                      2

DP ++

                      2

GLAN

                       1 x Intel I225LM PCIe(10/100/1000/2.5G speeds)

                1 x Intel I219LM PHY (10/100/1000 speeds) support vPro/AMT

                        1 x Intel I211AT PCIe (10/100/1000 speeds)

USB

4 x USB 3.2 Gen 2

4 x USB 3.2 Gen 1

Storage

Storage

           2 x SATA 3.0 for RAID 0/1/5/10( w/ M.2 Key-M/B slot + 2 SATA conn.,)

2 x SATA 3.0

Expansion

PCI e x 16 slot ( Gen 3)

1

M.2

                      1 x E Key ( PCIe x 1 / USB ) 2230

       1 x M Key ( PCIe x 4 Gen 3 / USB 3.2 Gen2 / USB 2.0/SATA ) 2280

1 x M Key( PCIe x 1 Gen 3 ) 2280

      1 x B Key ( PCIe x 1 Gen 3 /USB 3.2 Gen 2/ USB 2.0/ SATA)2242/3042/3052

1 x B Key ( PCI e x 1 Gen 3/ USB 3.2 Gen 1/ USB 2.0) 2242/3042/3052-

Power Requirement

Power Requirement

                          12V DC in for Tower PC with 3 Pin Power Terminal block with DC in 12V DC in external power adapter                        15 ~ 36V DC in for Tower PC with 3 Pin Power Terminal block with DC in 24V DC in external power adapter

OS support

OS support

Window 10 IoT Enterprise 64 bit

Linux

Mechanical & Environmental

Operation Temp.

0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

Wall mount

Construction

Full black steel

Dimension (WxHxD)

230 x 255 x 88 mm

Weight

2.8 kg

Optional

P/N: 2390000003

external antenna ( WIFI)

P/N: 312170000A

4GB LTE module

P/N: 312170000

5GB LTE module

Ordering Information

TB223SW04128

Tower Barebone Tower PC, Intel Socket 1200 with W480E, 4GB DDR 4 So-DIM, M.2 128GB SSD, DC in 12V DC in external power adapter

TB224SW04128

Tower Barebone Tower PC, Intel Socket 1200 with Q470E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in 12V DC in external power adapter

TB225SW04128

Tower Barebone Tower PC, Intel Socket 1200 with H420E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in 12V DC in external power adapter

TB226ZW04128

Tower Barebone Tower PC, Intel Socket 1200 with W480E, 4GB DDR 4 So-DIMM. M.2 128GB SSD, DC in 24V DC in external power adapter

TB227ZW04128

Tower Barebone Tower PC, Intel Socket 1200 with Q470E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in 24V DC in external power adapter

TB228ZW04128

Tower Barebone Tower PC, Intel Socket 1200 with H420E, 4GB DDR 4 So-DIMM, M.2 128GB SSD, DC in 24V DC in external power adapter

**Specifications are subject to change without notice.
