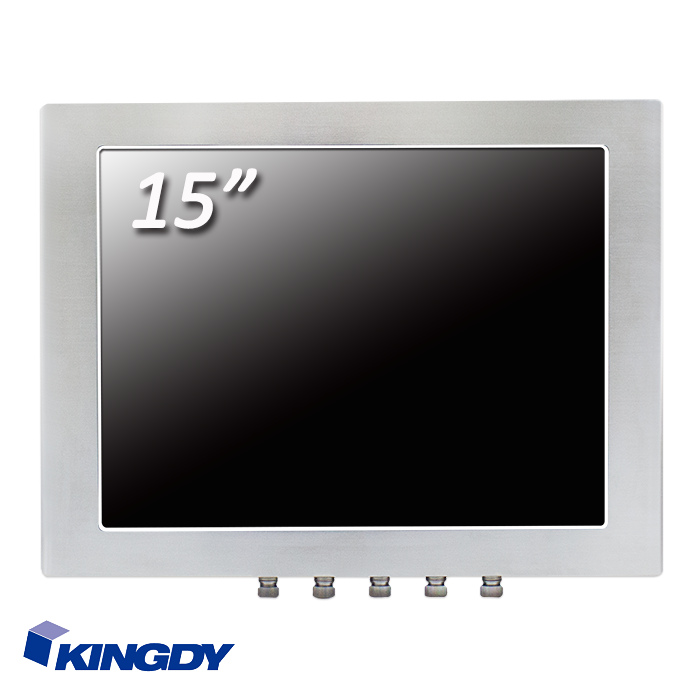

15" 4th Gen Touch IPC

● Fanless and rugged design
● 4th Gen Intel® i3 4010U / i5 4300U / i7 4650U CPU
● Resolution 1024 x 768 dpi
● 5 Wires Resistive touch solution

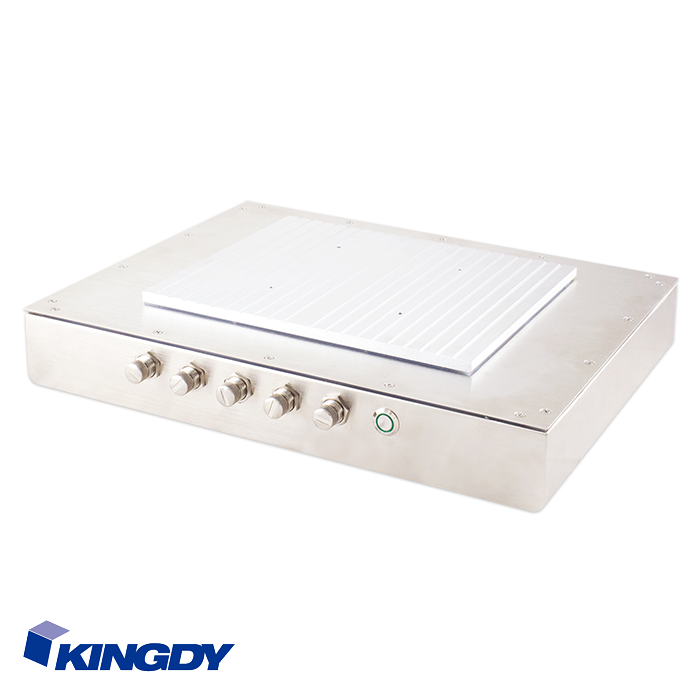

● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 1 x USB, 2 x RS232, 1 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless steel enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : WP150R017S, WP150R020S, WP150R022S

Model No.

WP150R017/020/022S

System

CPU

4th Gen Intel® HSW ULT i3 4010U (017) / i5 4300U (020) / i7 4650U (022) CPU (On Board)

Memory

2 x 204-pin DDR3L SODIMM up to 16 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

GLAN

1

USB

1

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

Power Requirement

Power Requirement

DC in 24V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 7, 8.1 / Embedded Win 7, 8.1

Display

Size

15" TFT (4:3)

Resolution

1024 x 768

Colors

16.2M

Luminance

400 cd/m2

Contrast Ratio

700:1

View Angle (H/V)

160°/160°

Mechanical & Environmental

Heatsink

Back side

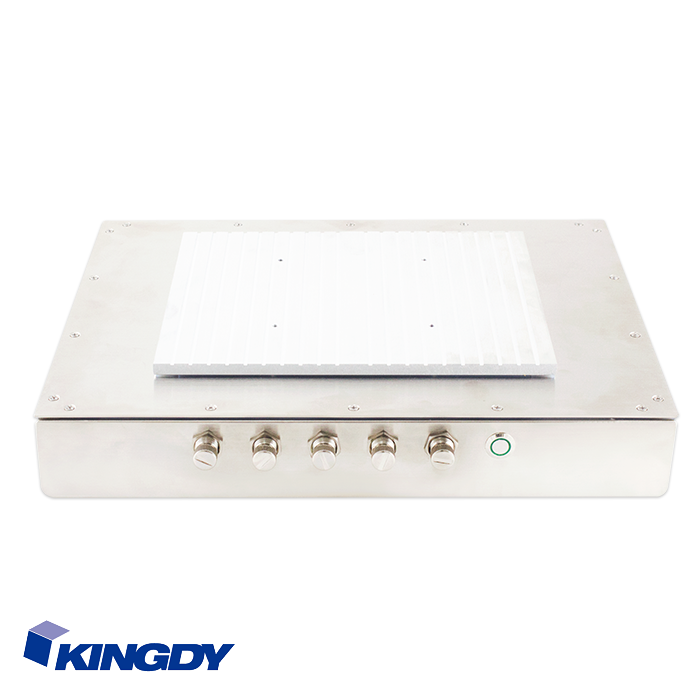

I/O ports

Bottom

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

379 x 289 x 67 mm

Weight

6.1 kg

Optional

P/N: 3100400001

External antenna (WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3120400001

RFID Reader RS232 interface
(
13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A170051

1600 cd/m2  High Brightness 15” LCD panel 1024 x 768 dpi

Optional HB Panel

WP150R017/020/022J

Resolution

1024 x 768

Color

16.2M

Luminance

1000 cd/m2

Contrast Ratio

2000 : 1

Viewing Angle (H/V)

176°/176°


Order information

WP150R017S04064

15” stainless steel panel PC Intel i3 4010U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

WP150R017J04064

15” stainless steel panel PC Intel i3 4010U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2

WP150R020S04064

15” stainless steel panel PC Intel i5 4300U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

WP150R020J04064

15” stainless steel panel PC Intel i5 4300U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2

WP150R022S04064

15” stainless steel panel PC Intel i7 4650U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

WP150R022J04064

15” stainless steel panel PC Intel i7 4650U processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2

**Specifications are subject to change without notice.
