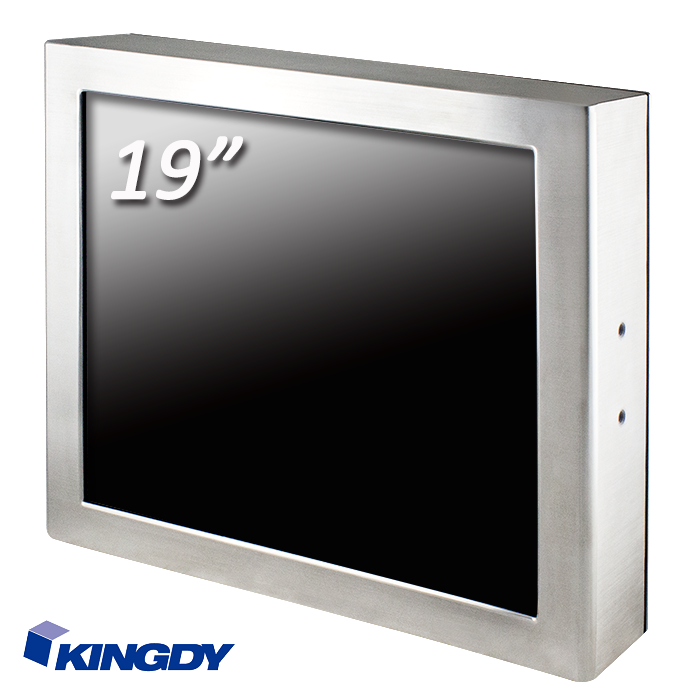

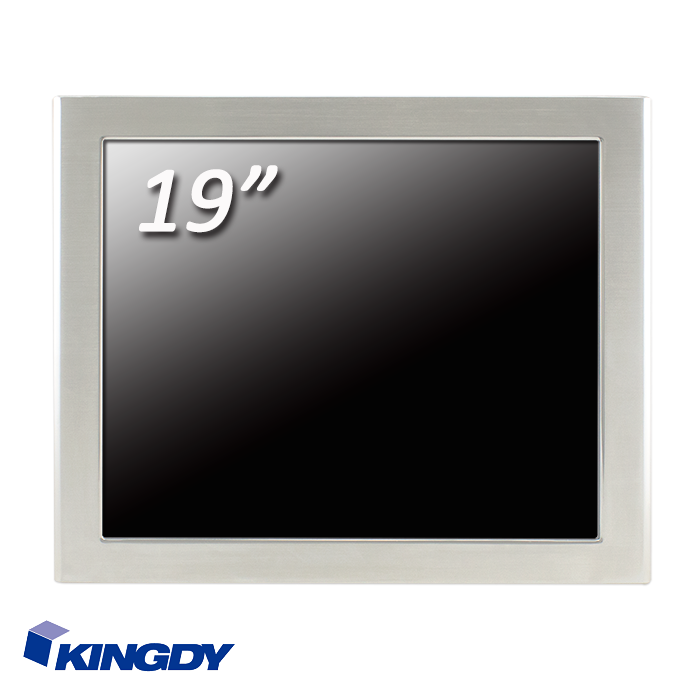

19" J1900 Touch IPC

● Fanless and rugged design
● Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor
● Resolution 1280 x 1024 dpi
● 5 wires resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 1 x USB, 2 x RS232, 1 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : WP190R005S, WP190R030S

Model No.

WP190R005S

WP190R030S

System

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

1

RS485

-

1

GLAN

1

1

USB

1

1

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

2 x Full-size

Power Requirement

Power Requirement

DC in 12V

DC in 24V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

19" TFT (4:3)

Resolution

1280 x 1024

Colors

16.7M

Luminance

250 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

170°/160°

Mechanical & Environmental

I/O ports

Back side

Operation Temp

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

455 x 368 x 67 mm

Weight

10 kg

Optional

P/N: 3100400001

External antenna (WIFI)

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
( 60W /
90 ~ 295V AC input / 12V DC output) for WP190R005S

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
(60W /
90 ~ 295V AC input / 24V DC output) for WP190R030S

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W /
90 ~ 295V AC input / 12V DC output) for WP190R005S

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W /
90 ~ 295V AC input / 24V DC output) for WP190R030S

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port for WP190R030S

P/N: 3120400001

RFID Reader RS232 interface
(
13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

Optional HB Panel

WP190R005J

WP190R030J

Resolution

1280 x 1024

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/160°

Ordering Information

WP190R005S04064

19” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter

WP190R005J04064

19” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

WP190R030S04064

19” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter

WP190R030J04064

19” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
