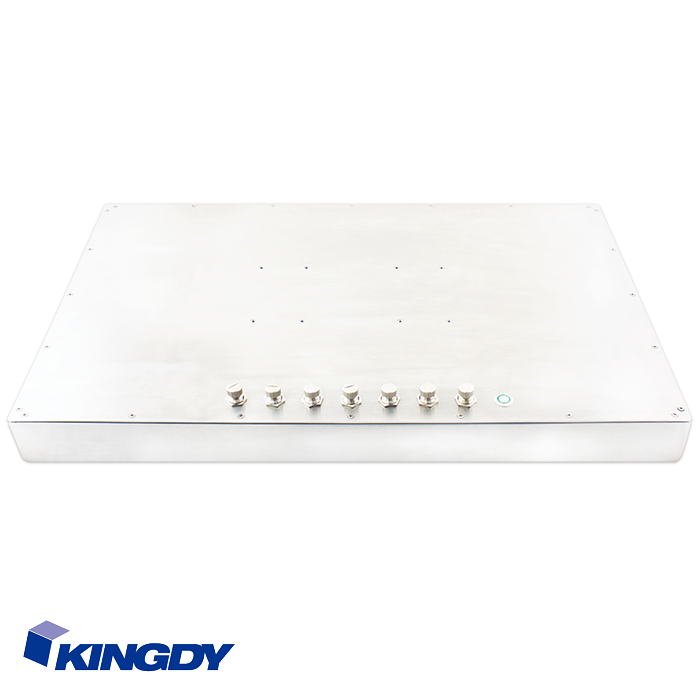

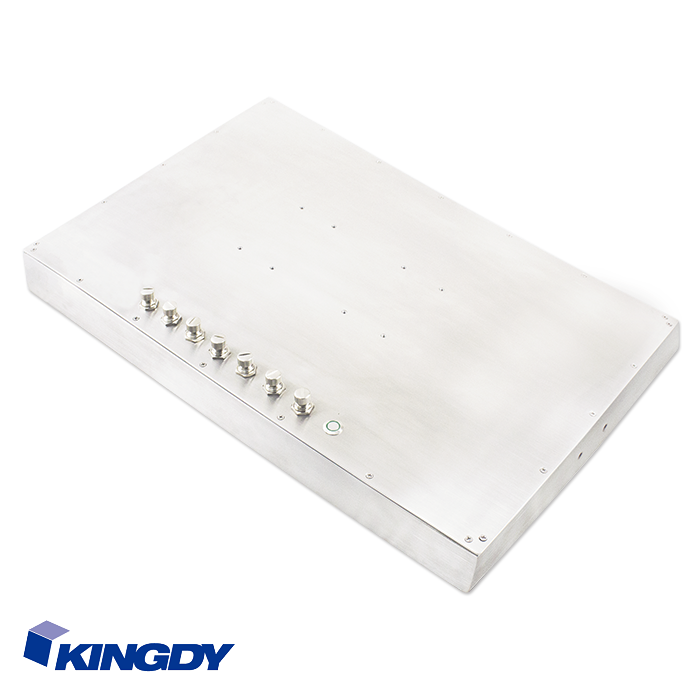

24" J1900 Touch IPC

● Fanless and rugged design
● Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor
● Resolution 1920 x 1080 dpi
● 5 Wires Resistive touch solution
● Full 304 IP65 6 sides stainless enclosure
● All IP65 M12 waterproof connectors
● 3 x USB, 2 x RS232, 1 x GLAN
● VESA mount & Yoke mount
● Full 316 IP65 6 sides stainless enclosure optional
● Optical bonding, high brightness sunlight readable solution
Model : WP240R005S. WP240R030S

Model No.

WP240R005S

WP240R030S

System

CPU

Intel® Bay Trail D-J1900 2.0GHz Quad Core Processor

Memory

1 x 204-pin DDR3L SODIMM up to 8 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

I/O Ports

RS232

2

1

RS232/422/485

-

1

GLAN

1

2

USB

3

2

Storage

Storage

1 x SATA 2.0  2.5” HDD/SSD

Expansion

Mini PCI-E

1 x Full-size

2 x Full size

Power Requirement

Power Requirement

DC in 12V

DC in 24V

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10  /  Embedded Win 7, 8, 10  /  Win 10 IoT  /  Linux Fedora 20, Ubuntu 13.10

Display

Size

24" TFT (16:9)

Resolution

1920 x 1080

Colors

16.7 M

Luminance

250 cd/m2

Contrast Ratio

1000:1

View Angle (H/V)

173°/165°

Mechanical & Environmental

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

VESA mount (100X100mm) & Yoke mount

Dimension (WxHxD)

620 x 400 x 57 mm

Weight

TBD

Optional

P/N: 2390000003

External antenna ( WIFI )

P/N: 2351215001

Full IP65 Waterproof Power adaptor with European power cord
( 132W /
90 ~ 295V AC input / 12V DC output) for WP240R005S

P/N: 2352415002

Full IP65 Waterproof Power adaptor with European power cord
 (150W /
90 ~ 295V AC input / 24V DC output) for WP240R030S

P/N: 2351215002

Full IP65 Waterproof Power adaptor with US power cord
( 132W /
90 ~ 295V AC input / 12V DC output) for WP240R005S

P/N: 2352415003

Full IP65 Waterproof Power adaptor with US power cord
 (150W /
90 ~ 295V AC input / 24V DC output) for WP240R030S

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port for WP240R030S

P/N: 3120400001

RFID Reader (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

Optional HB Panel

WP240R005J

WP240R030J

Resolution

1920 x 1080

Color

16.7M

Luminance

1000 cd/m2

Contrast Ratio

1000:1

Viewing Angle (H/V)

173°/165°

Ordering Information

WP240R005S04064

24” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., TLC 64GB SSD, 12V DC in power adapter

WP240R005J04064

24” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., TLC 64GB SSD, 12V DC in power adapter, 1000 cd/m2, external heatsink

WP240R030S04064

24” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., TLC 64GB SSD, 24V DC in power adapter

WP240R030J04064

24” stainless steel panel PC, Intel J1900 processor, 4GB DDRIII L So-DIMM., TLC 64GB SSD, 24V DC in power adapter, 1000 cd/m2, external heatsink

**Specifications are subject to change without notice.
