Model No.

TB083FW

TB084FW

System

CPU

9th 8th Gen Intel® Coffee socket 1151 Pentium / Celeron / i3 / i5 / i7 series Processor,( Max 65W )

Chipset

Intel® Q370 Express

Intel® C246 Express

Memory

2 x 260-pin DDR4 2666MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

TPM

TPM

Pin header

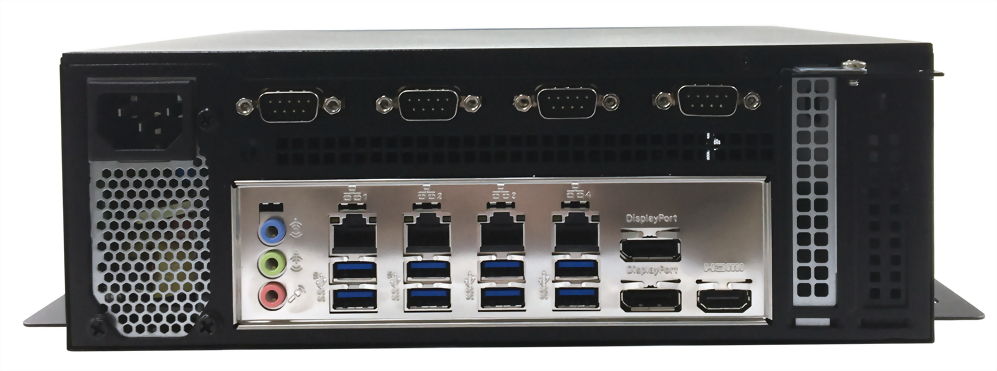

I/O Ports

RS232/422/485

2 ( 0V/5V/12V Auto flow control)

RS232

2 ( 0V/5V/12V Auto flow control)

HDMI

1

DP

2

USB

4 x USB 3.2 Gen 2 , 4 x USB 3.2 Gen 1

GLAN

1 x Intel I219- LM & 1 x I210-AT

1 x Intel I219- LM & 3 x I210-AT

Line in / Line out / MIC in

1 / 1 / 1

Storage

Storage

3 x SATA 3.0 ( Support RAID 0/1/5/10 AHCI mode , RAID 10 Configured with M.2 M key)

Expansion

PCI e x 16 slot

1

Mini PCI - e slot

1 x Full-size (w/SIM holder)

M.2 slot

1 x M key ( 2242/2280 ) , 1 x E key (2230 )

Power Requirement

Power Requirement

300W flex power supply

OS support

OS support

Window 10 Pro / window embedded 10 / Window 10 IoT / Linux Kemel 4.x

Mechanical & Environmental

Operation Temp.

0 ~ 50°C

Storage Humidity

10 ~ 90%, non-condensing

Mounting

Wall mount

Construction

Full steel

Dimension (WxHxD)

230 x 255 x 88 mm

Weight

3kg

Optional

P/N: 2390000003

external antenna ( WIFI)

P/N: 3121700001

4GB LTE module with SIM socket

P/N: 307TB5000A

1 x SATA 3.5” HDD

P/N: 307TB50001

1 x SATA 2.5” HDD

Ordering Information

TB083FW04500

Fan Tower PC Intel Socket,1151,Q370 express, 2 x GLAN, 4GB DDR 4 So-DIMM. 1 x 2.5” 500GB HDD, 1 x single power supply

TB083FW04128

Fan Tower PC Intel Socket 1151, Q370 express 2 x GALN, 4GB DDR4 So-DIMM. 1 x M.2 128GB SSD, 1 x single power supply

TB084FW04500

Fan Tower PC Intel Socket,1151, C246 express 4 x GLAN. 4GB DDR 4 So-DIMM. 1 x 2.5” 500GB HDD, 1 x single power supply

TB084FW04128

Fan Tower PC Intel Socket 1151,C246 express, 4 x GALN, 4 GB DDR 4 So-DIMM. 1 x M.2 128GB SSD, 1 x single power supply

**Specifications are subject to change without notice.
