Name: Tiny Box PC-i.MX6 Cortex-A9 Dual Lite/ Quad
Brand: Kingdy Technology Inc.
SKU: TB-045W

Tiny Box PC-i.MX6 Cortex-A9 Dual Lite/ Quad

● Fanless solution and compact housing
● Tiny size easy to insta¬¬ll and maintain
● iMax6 Cortex-A9 Dual Lite / Quad 1.0 Ghz
● Single Chanel DDR3L up to 2GB
● 2 x USB2.0, 1 x RS485 1 x HDMI, 2 x LAN,
● Wall mount / DIN Rail
● Wide Temperature solution
● Preload Fedora on eMMC

Model : TB-045W

Datasheet

Drawing

Q'ty :

Specifications
Features

System
CPU	i.MX6 Cortex-A9 Dual Lite, 1.0 GHz i.MX6 Cortex-A9 Quad, 1.0 GHz
Memory	Single-channel DDR3L 1600MHz 1GB for Dual Lite ;2GB for Quad (On Board)
H/W Monitor
Watch Dog Timer 256 Level
I/O Ports

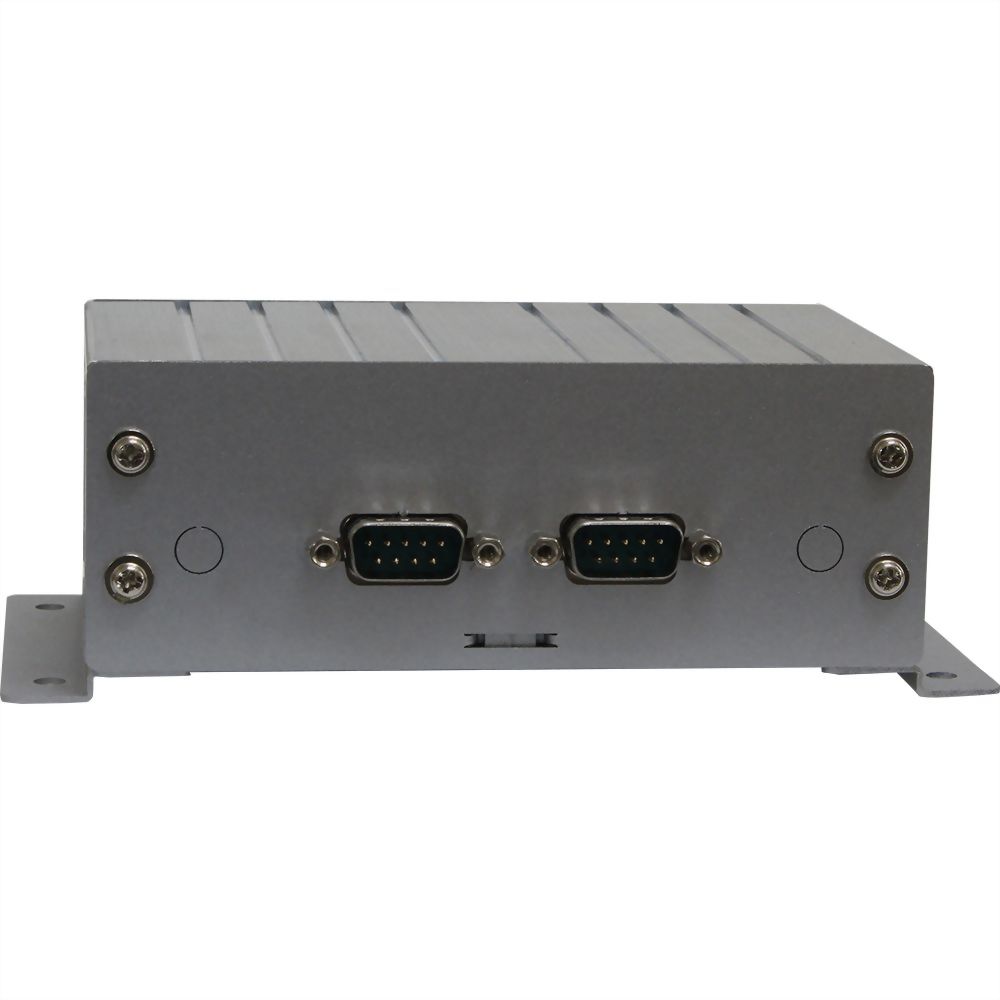

RS232 /422/485	1
RS485 (2 wire )	1
GLAN	2
USB	1 x USB 2.0
HDMI	1X VGA up to 1920 x 1600
Storage
SD card	1
eMMC	8G (on Board) 16/32G is Optional
Expansion
Mini-PCIe	1 x Full-size
Power Requirement
Power Requirement	DC in 9~36V
OS support
	Yocto (1.8, Default Preloaded on eMMC ; Android (5.1.1)
Mechanical &Environmental
Operation Temp	-20~ 70°C
Storage / Operation Humidity	5 ~ 90%, non-condensing

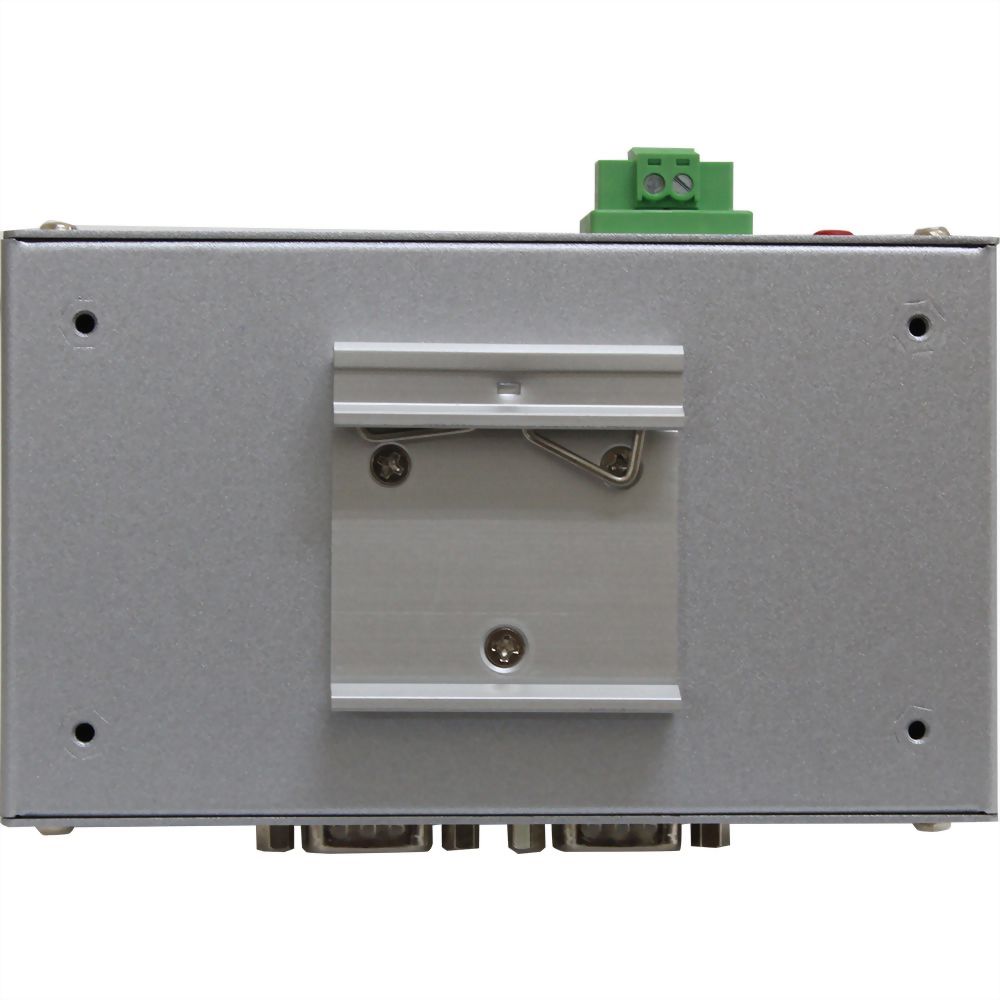

Mount	Wall mount & Din Rail
Construction	Aluminum + steel
Dimension (W x H x D mm)&Weight	130 x 42 x 92(1kg)
Optional
External Antenna	1
DIO	1 x 8 bit

** Specifications are subject to change without notice.

Fanless solution and compact housing
Tiny size easy to insta¬¬ll and maintain
iMax6 Cortex-A9 Dual Lite / Quad 1.0 Ghz
Single Chanel DDR3L up to 2GB
2 x USB2.0, 1 x RS485 1 x HDMI, 2 x LAN,
Wall mount / DIN Rail
Wide Temperature solution
Preload fedora on eMMc
