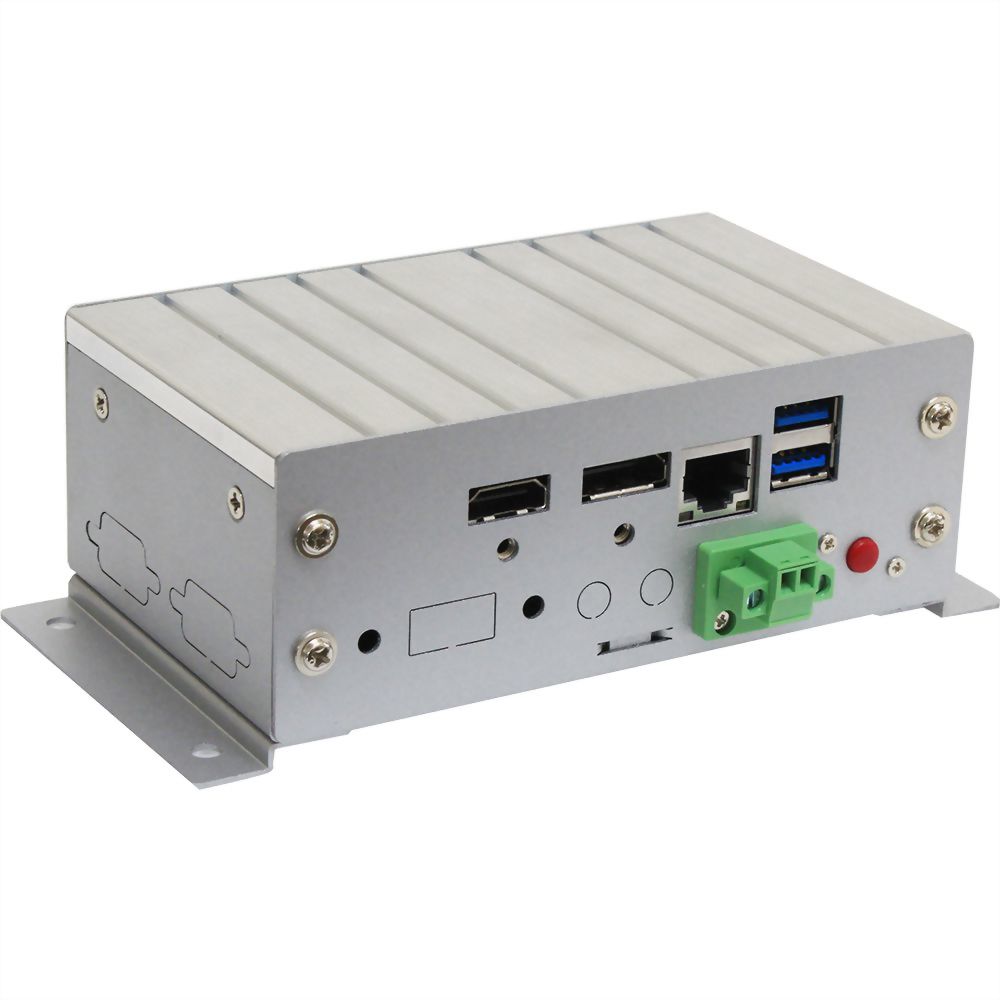

Tiny Box PC-Intel® Celeron® N3160/N3010

● Fanless solution and compact housing
● Tiny size easy to insta¬¬ll and maintain
● Intel® Celeron ® N3160/ N3010 CPU
● Single Chanel DDR3L 2GB on Board

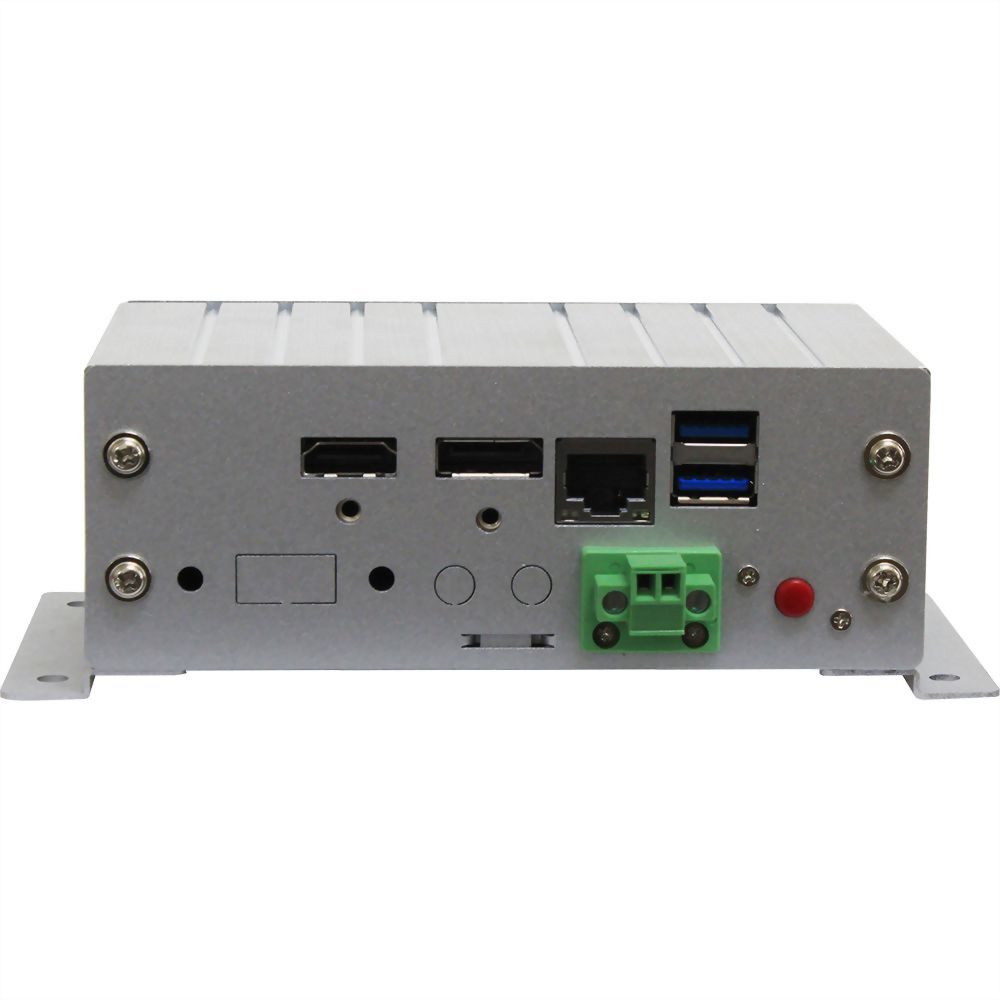

● 2 x USB3.0, 1 x DP,1 x HDMI, 1 x LAN, 2 x RS232

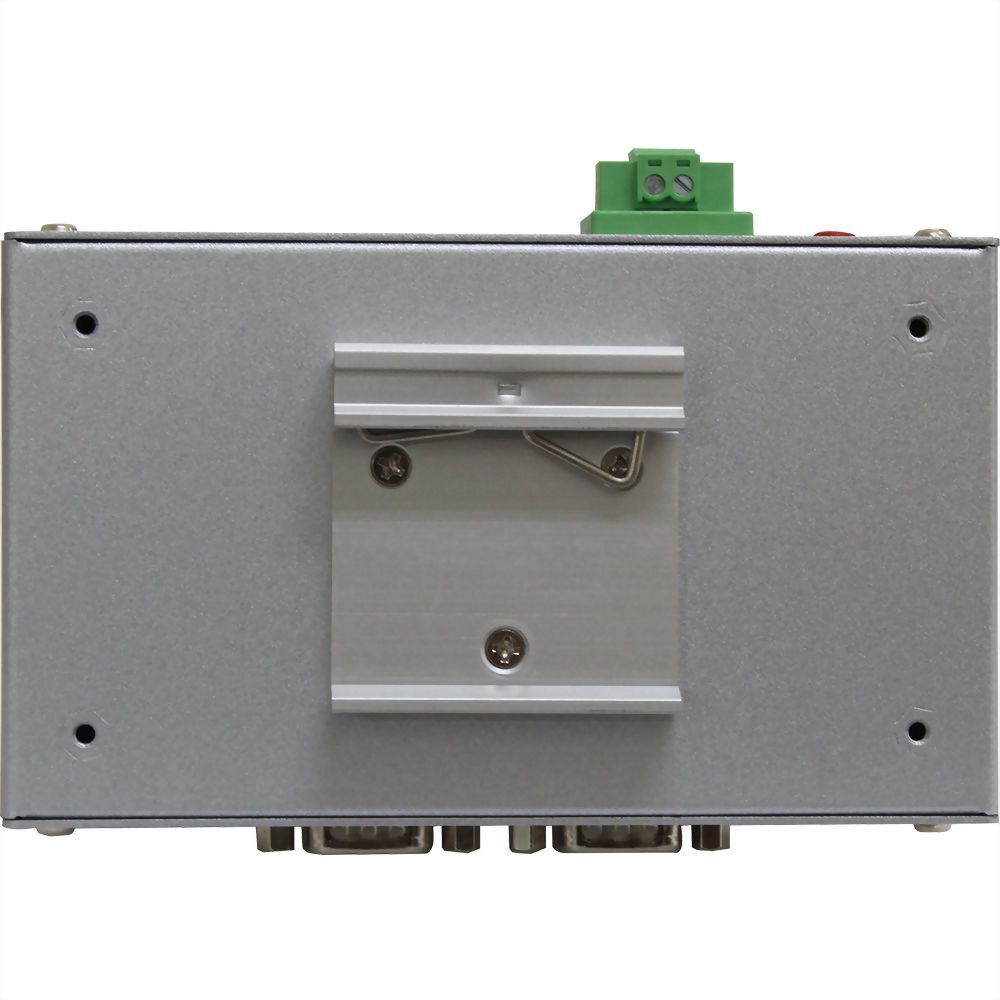

● Wall mount / DIN Rail
● Full Support Intel IoT
Model : TB047S
System
CPU Intel® Celeron® processor N3160;Intel® Celeron® processor N3010,
Memory Single-channel DDR3L 1600MHz 2GB on Board
H/W Monitor
Watch Dog Timer 256 Level
I/O Ports
RS232 /422/485 2
GLAN

2

USB 2 x USB 3.0
DP 1
HDMI 1X VGA up to 1920 x 1600
Storage
mSATA 1 x mSATA
Expansion
Mini-PCIe

1 x Half-size

Power Requirement
Power Requirement DC in 12V
OS support
  Win 7 Pro , Win 8 Pro , Win 10 , Fedora 22, Ubuntu 14.04
Mechanical &Environmental
Operation Temp -10~ 50°C
Storage Humidity 10 ~ 90%, non-condensing
Storage Temp -20~ 80°C
Mount Wall mount & Din Rail
Construction Aluminum + steel

Dimension (W x H x D mm)&Weight

130 x 42 x 92(1kg)

Optional
USB 2.0 1
External Antenna 1 or 2
GIPO 16bit (8 x GPI; 8 x GPO)

** Specifications are subject to change without notice.
