Model No.

WP170R103/104/105/106S

System

CPU

11^th Gen Intel® Core™ Celeron 6305E / i3 1115G4E / i5 1145G7E / i7 1185G7E processors

Memory

2 x 260-pin DDR4 3200MHz SODIMM up to 64 GB

H/W Monitor

H/W Monitor

Watch Dog Timer 256 Level

TPM

Controller

Infineon SLB9670VQ2.0

I/O Ports

RS232

2

GLAN

1

USB

1

Storage

Storage

1 x SATA 3.0

Expansion

M.2

1 x M.2 M key(PCI e Gen x 4 NVMe) 2280

1 x M2 B Key ( PCI e x 1 , USB 2.0 w/NANO SIM Holder SATA 3.0) 2242/3042

 1 x M.2 E key (PCI e x 1, USB 2.0) 2230

Power Requirement

Power Requirement

DC in 12 ~ 24V ( OCP & OVP)

Touch Screen

Touch Screen

5 Wires Resistive (one touch)

OS support

OS support

Win Pro 10 / Window 10 IoT / Linux Kernel 5.4 Ubuntu LTS

Display

Size

17" TFT (4:3)

Resolution

1280 x 1024 dpi

Colors

16.7M

Luminance

350 cd/m²

Contrast Ratio

1000:1

View Angle (H/V)

140°/170°

Mechanical & Environmental

Heatsink

Back side

I/O ports

Back side

Operation Temp.

0 ~ 45°C

Storage Humidity

10 ~ 90%, non-condensing

Mount

VESA mount (100 x 100mm) & Yoke mount

Dimension (WxHxD)

425 x 361 x 78 mm

Weight

8.8 kg

Optional

P/N: 3100400001

External antenna (WIFI)

5G LET module

P/N: 2351206003

Full IP65 Waterproof Power adaptor with European power cord
 ( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406011

Full IP65 Waterproof Power adaptor with European power cord
 (60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2351206004

Full IP65 Waterproof Power adaptor with US power cord
( 60W / 90 ~ 295V AC input / 12V DC output)

P/N: 2352406012

Full IP65 Waterproof Power adaptor with US power cord
(60W / 90 ~ 295V AC input / 24V DC output)

P/N: 2320000001

Optical Bonding

P/N: 2340000006

HDMI port

P/N: 3120400001

RFID Reader RS232 interface
 (13.56 MHz standard and 125KHz, Up to 50 mm at 5V ~ 18V)

P/N: 302A170051

1600 cd/m²  High Brightness 17” LCD panel 1280 x 1024 dpi

Optional HB Panel

WP170R103/104/105/106J

Resolution

1280 x 1024 dpi

Color

16.7M

Luminance

1000 cd/m²

Contrast Ratio

1000 : 1

Viewing Angle (H/V)

170°/165°

Order information

WP170R103R04128

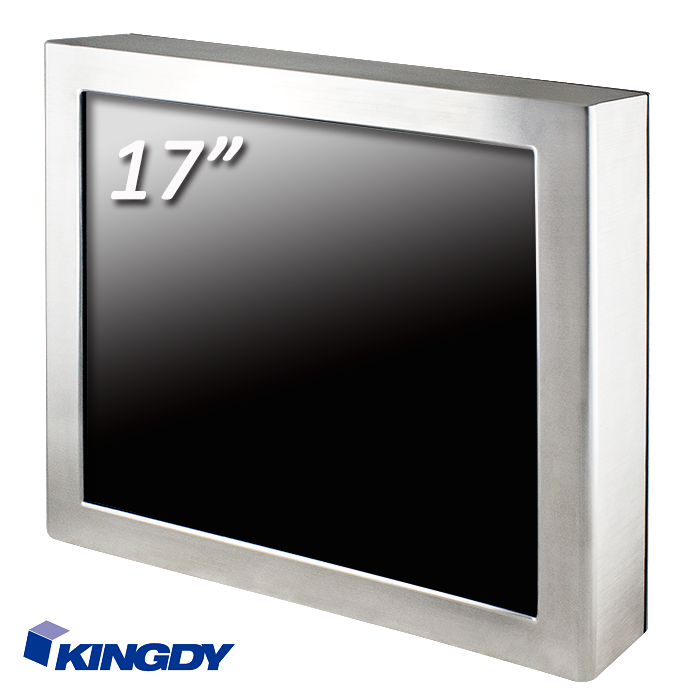

17” stainless steel panel PC, Intel Celeron 6305E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

WP170R103J04128

17” stainless steel panel PC, Intel Celeron 6305E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter,1000nit

WP170R104S04128

17” stainless steel panel PC, Intel i3 1115G4E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

WP170R104J04128

17” stainless steel panel PC, Intel i3 1115G4E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter,1000nit

WP170R105S04128

17” stainless steel panel PC, Intel i5 1145G7E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

WP170R105J04128

17” stainless steel panel PC, Intel i5 1145G7E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter,1000nit

WP170R106S04128

17” stainless steel panel PC, Intel i7 1185G7E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter

WP170R106J04128

17” stainless steel panel PC, Intel i7 1185G7E processor, 4GB DDR4 So-DIMM., M.2 128GB SSD, DC in power adapter,1000nit

**Specifications are subject to change without notice.
